19302160757

Active

HARTING Technology Group

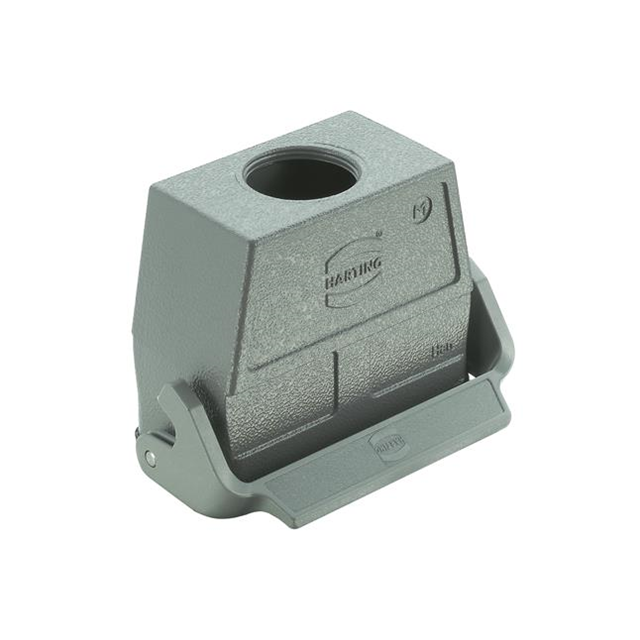

16B HOOD CABLE TO CABLE, SINGLE LEVER, HIGH CONSTRUCTION, M32 - HIGH MATING CYCLE VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

16B HOOD CABLE TO CABLE, SINGLE LEVER, HIGH CONSTRUCTION, M32 - HIGH MATING CYCLE VERSION

Technical Specifications

Parameters and characteristics for this part

Specification	19302160757

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.681 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	77.9 mm
Size / Dimension [z]	3.067 in
Style	Top Entry
Thread Size	M32

Part	Connector Type	Housing Color	Style	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Housing Finish	Features	Housing Material	Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Ingress Protection
HARTING Technology Group 19302160757	Hood - Coupling	Gray	Top Entry	Locking Clip (1) on Hood	125 °C	-40 °C	M32	Powder Coated	Cable to Cable	Aluminum Die Cast	16 B	77.9 mm	93.5 mm	43 mm	1.693 in	3.681 "	3.067 in	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19302160447	Hood	Gray	Top Entry	Locking Clip (1) on Base Bottom	125 °C	-40 °C	M32	Powder Coated		Aluminum Die Cast	16 B	76 mm	93.5 mm	43 mm	1.693 in	3.681 "	2.992 in	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19302160292	Base - Box Mount	Gray	Side Entry	Locking Clip (1) on Base Bottom	125 °C	-40 °C	M32	Powder Coated	Feed Through	Aluminum Die Cast	16 B	80.8 mm	117 mm	57 mm	2.244 "	4.606 "	3.181 "	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Top Entry M32 16B IP65 - Dust Tight, Water Resistant
