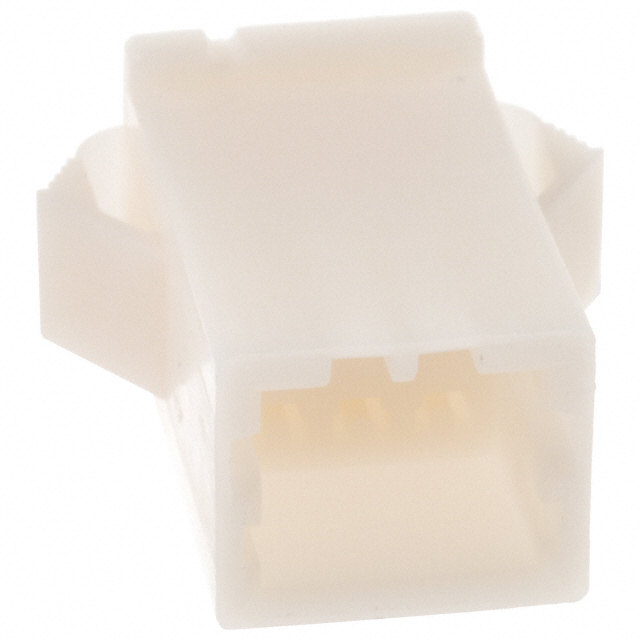

DF1BA-6DEP-2.5RC

Active

Hirose Electric USA, Inc.

[SIGNALBEE ] 2.5MM PITCH CONNECTORS FOR DISCRETE WIRE (UL/CSA CERTIFIED)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF1BA-xDEP-2.5RC Spec Datasheet

DF1BA-6DEP-2.5RC

Active

Hirose Electric USA, Inc.

[SIGNALBEE ] 2.5MM PITCH CONNECTORS FOR DISCRETE WIRE (UL/CSA CERTIFIED)

Deep-Dive with AI

DocumentsDF1BA-xDEP-2.5RC Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF1BA-6DEP-2.5RC

Color	White
Connector Type	Plug
Contact Termination	Crimp, IDC
Contact Type	Male Pin
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Row Spacing	0.098 in
Row Spacing	2.5 mm

DF1BA Series

Part	Number of Rows	Note	Mounting Type	Contact Termination	Insulation Material	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Color	Contact Type	Number of Positions	Row Spacing	Row Spacing	Number of Positions
Hirose Electric USA, Inc. DF1BA-5EP-2.5RC	1	Contacts Not Included	Panel Mount Snap-In	Crimp IDC	Nylon Polyamide (PA)	0.098 in	2.5 mm	-35 °C	85 °C	Plug	White	Male Pin
Hirose Electric USA, Inc. DF1BA-18DEP-2.5RC	2	Contacts Not Included	Panel Mount Snap-In	Crimp IDC	Nylon Polyamide (PA)	0.098 in	2.5 mm	-35 °C	85 °C	Plug	White	Male Pin	18	0.098 in	2.5 mm
Hirose Electric USA, Inc. DF1BA-26DEP-2.5RC	2	Contacts Not Included	Panel Mount Snap-In	Crimp IDC	Nylon Polyamide (PA)	0.098 in	2.5 mm	-35 °C	85 °C	Plug	White	Male Pin	26	0.098 in	2.5 mm
Hirose Electric USA, Inc. DF1BA-8EP-2.5RC	1	Contacts Not Included	Panel Mount Snap-In	Crimp IDC	Nylon Polyamide (PA)	0.098 in	2.5 mm	-35 °C	85 °C	Plug	White	Male Pin	8
Hirose Electric USA, Inc. DF1BA-20DEP-2.5RC	2	Contacts Not Included	Panel Mount Snap-In	Crimp IDC	Nylon Polyamide (PA)	0.098 in	2.5 mm	-35 °C	85 °C	Plug	White	Male Pin	20	0.098 in	2.5 mm
Hirose Electric USA, Inc. DF1BA-6DEP-2.5RC	2	Contacts Not Included	Panel Mount Snap-In	Crimp IDC	Nylon Polyamide (PA)	0.098 in	2.5 mm	-35 °C	85 °C	Plug	White	Male Pin	6	0.098 in	2.5 mm
Hirose Electric USA, Inc. DF1BA-7EP-2.5RC	1	Contacts Not Included	Panel Mount Snap-In	Crimp IDC	Nylon Polyamide (PA)	0.098 in	2.5 mm	-35 °C	85 °C	Plug	White	Male Pin	7
Hirose Electric USA, Inc. DF1BA-22DEP-2.5RC	2	Contacts Not Included	Panel Mount Snap-In	Crimp IDC	Nylon Polyamide (PA)	0.098 in	2.5 mm	-35 °C	85 °C	Plug	White	Male Pin	22 positions	0.098 in	2.5 mm
Hirose Electric USA, Inc. DF1BA-3EP-2.5RC	1	Contacts Not Included	Panel Mount Snap-In	Crimp IDC	Nylon Polyamide (PA)	0.098 in	2.5 mm	-35 °C	85 °C	Plug	White	Male Pin
Hirose Electric USA, Inc. DF1BA-16DEP-2.5RC	2	Contacts Not Included	Panel Mount Snap-In	Crimp IDC	Nylon Polyamide (PA)	0.098 in	2.5 mm	-35 °C	85 °C	Plug	White	Male Pin		0.098 in	2.5 mm	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		10	$ 0.31
		25	$ 0.28
		50	$ 0.26
		100	$ 0.24
		250	$ 0.21
		500	$ 0.20
		1000	$ 0.18
		2500	$ 0.17
Newark	Each	1	$ 0.23
		10000	$ 0.20

Description

General part information

DF1BA Series

6 Rectangular Connectors - Housings Plug White 0.098" (2.50mm)

Documents

Technical documentation and resources

DF1BA-xDEP-2.5RC Spec

Datasheet
