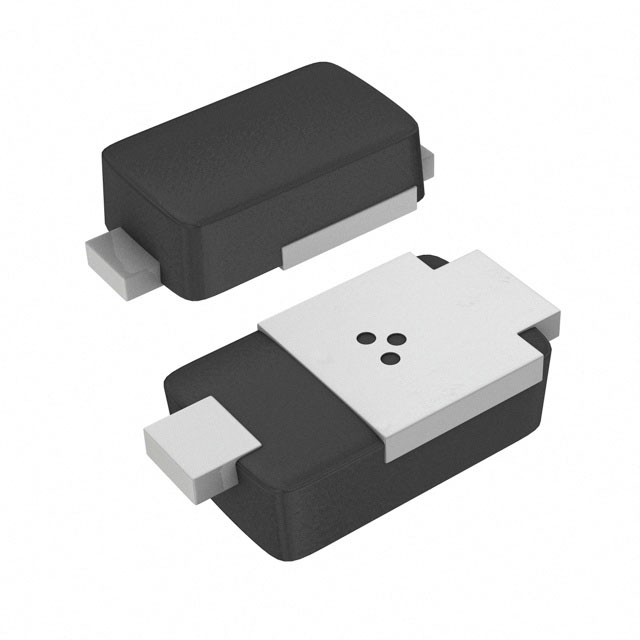

VS-1EQH01HM3/H
ActiveVishay General Semiconductor - Diodes Division
DIODE GEN PURP 100V 1A DO219AD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VS-1EQH01HM3/H |
|---|---|
| Capacitance @ Vr, F | 6 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 1 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | DO-219AD |
| Qualification | AEC-Q101 |
| Reverse Recovery Time (trr) | 23 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DO-219AD (MicroSMP) |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 970 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.21 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.21 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.08 | |||
| Tape & Reel (TR) | 4500 | $ 0.07 | ||
| 9000 | $ 0.06 | |||
| 13500 | $ 0.06 | |||
| 22500 | $ 0.06 | |||
| 31500 | $ 0.05 | |||
| 45000 | $ 0.05 | |||
| 112500 | $ 0.05 | |||
Description
General part information
1EQH01 Series
Diode 100 V 1A Surface Mount DO-219AD (MicroSMP)
