SPB1-48F01-3580-00

Active

New Energy

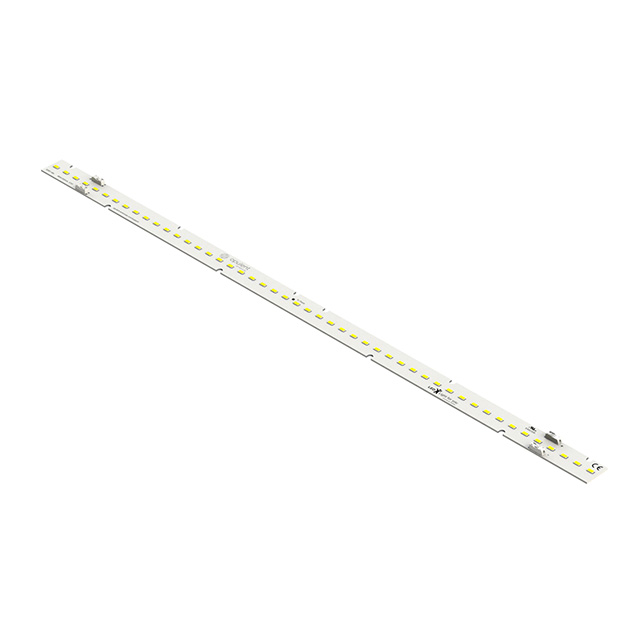

LED MOD SPB1 WHT LNR STRP 3500K

Search across all available documentation for this part.

Active

New Energy

LED MOD SPB1 WHT LNR STRP 3500K

Technical Specifications

Parameters and characteristics for this part

Specification	SPB1-48F01-3580-00

CCT (K)	3500 K
Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	600 mA
Current - Test	400 mA
Height [z]	6 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	179 lm/W
Luminous Flux @ Current/Temperature	2488 lm
Size / Dimension [x]	559.5 mm
Size / Dimension [y]	22 mm
Temperature - Test	50 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	33.5 V

Part	Type	Lumens/Watt @ Current - Test	Temperature - Test	CRI (Color Rendering Index)	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Color	Lens Type	Height [z]	Configuration	CCT (K)
New Energy SPB1-48F01-3580-00	LED Module	179 lm/W	50 °C	80	600 mA	33.5 V	400 mA	22 mm	559.5 mm	2488 lm	Warm White	Flat	6 mm	Linear Light Strip	3500 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module SPB1 White, Warm Linear Light Strip
