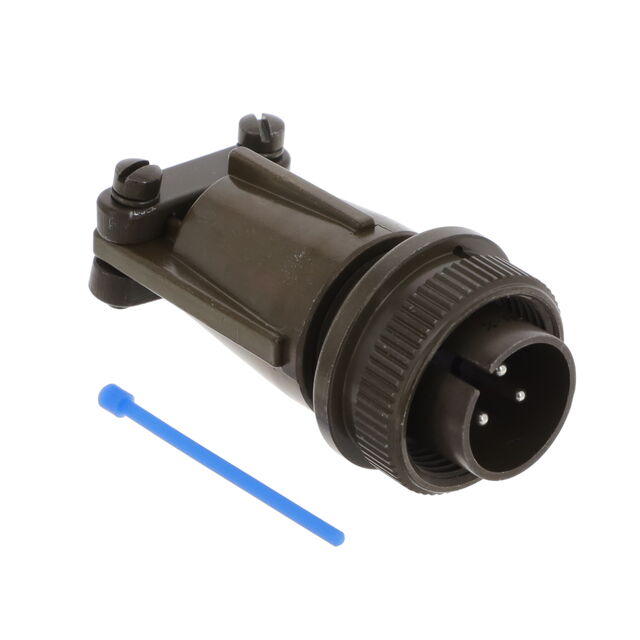

MS3106E14S-12P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106E14S-12P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106E14S-12P

Applications	Military, Marine
Cable Opening [diameter]	10.31 mm
Cable Opening [diameter]	0.406 in
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Cable Clamp, Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-12
Shielding	Unshielded

MS3106E14 Series

Part	Contact Finish - Mating	Color	Shell Finish	Insert Material	Orientation	Ingress Protection	Shell Material	Qualification	Shell Size - Insert	Connector Type	Applications	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Mounting Type	Features	Shielding	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Grade
Amphenol Industrial Operations MS3106E14S-12S
Amphenol Industrial Operations MS3106E14S-10P
Amphenol Industrial Operations MS3106E14S-1P	Silver	Olive Drab	Olive Drab Chromate over Cadmium	Neoprene	N	Environment Resistant	Aluminum Alloy	MIL-5015	14S-1	Male Pins Plug	Marine Military	Metal	10.3 mm	0.406 in	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Unshielded	Copper Alloy	-55 °C	125 °C
Amphenol Industrial Operations MS3106E14S-13S
Amphenol Industrial Operations MS3106E14S-11P
Amphenol Industrial Operations MS3106E14S-12P	Silver	Olive Drab	Olive Drab Chromate over Cadmium	Neoprene	N	Environment Resistant	Aluminum Alloy	MIL-DTL-5015	14S-12	Male Pins Plug	Marine Military	Metal			Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Unshielded	Copper Alloy	-55 °C	125 °C	10.31 mm	0.406 in	13 A	Military
Amphenol Industrial Operations MS3106E14S-1S	Silver	Olive Drab	Olive Drab Chromate over Cadmium	Neoprene	N	Environment Resistant	Aluminum Alloy	MIL-5015	14S-1	Female Sockets Plug	Marine Military	Metal	10.3 mm	0.406 in	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Unshielded	Copper Alloy	-55 °C	125 °C
Amphenol Industrial Operations MS3106E14S-10S
Amphenol Industrial Operations MS3106E14S-7P	Silver	Olive Drab	Olive Drab Chromate over Cadmium	Neoprene	N	Environment Resistant	Aluminum Alloy	MIL-5015	14S-7	Male Pins Plug	Marine Military	Metal	10.3 mm	0.406 in	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Unshielded	Copper Alloy	-55 °C	125 °C
Amphenol Industrial Operations MS3106E14S-4P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 40.81
		10	$ 35.73
		25	$ 34.19
		50	$ 33.09
		100	$ 31.98
		250	$ 30.22

Description

General part information

MS3106E14 Series

3 Position Circular Connector Plug, Male Pins Solder Cup
