1420A 06010000

Active

Belden Inc.

MULTI-PAIR 6COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1420A 06010000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	3048 m
Length [x]	10000 ft
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	24 AWG

Part	Wire Gauge	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Features	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Jacket Color	Cable Type	Shield Material	Shield Coverage	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Jacket (Insulation) Material	Length	Length	Length [x]	Length [x]
Belden Inc. 1420A 0601000	24 AWG	Copper Tinned	-20 C	80 C	UL Style 2919	Drain Wire	Foil	32 AWG	7	Computer	Chrome	Multi-Pair	Aluminum	100 %	6	0.889 mm	0.035 in	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
Belden Inc. 1420A 06010000	24 AWG	Copper Tinned	-20 C	80 C	UL Style 2919	Drain Wire	Foil	32 AWG	7	Computer	Chrome	Multi-Pair	Aluminum	100 %	6	0.889 mm	0.035 in	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)		3048 m	10000 ft
Belden Inc. 1420A 060500	24 AWG	Copper Tinned	-20 C	80 C	UL Style 2919	Drain Wire	Foil	32 AWG	7	Computer	Chrome	Multi-Pair	Aluminum	100 %	6	0.889 mm	0.035 in	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)			500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 1.94

General part information

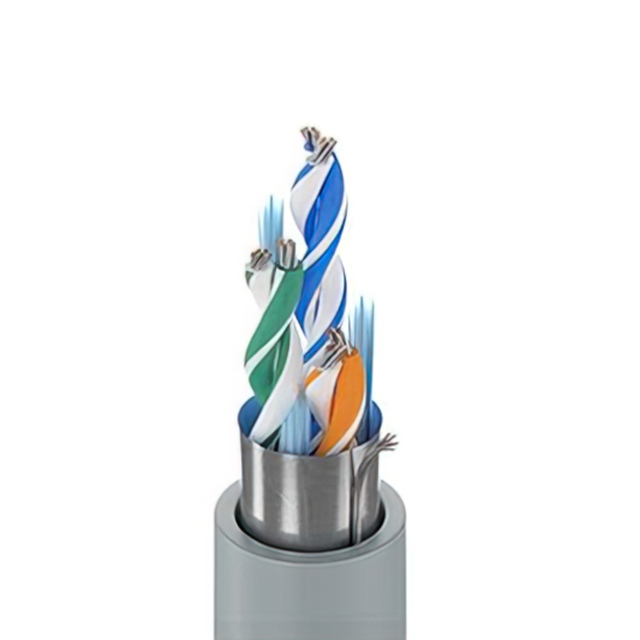

6 (3 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 10000' (3048.0m)
