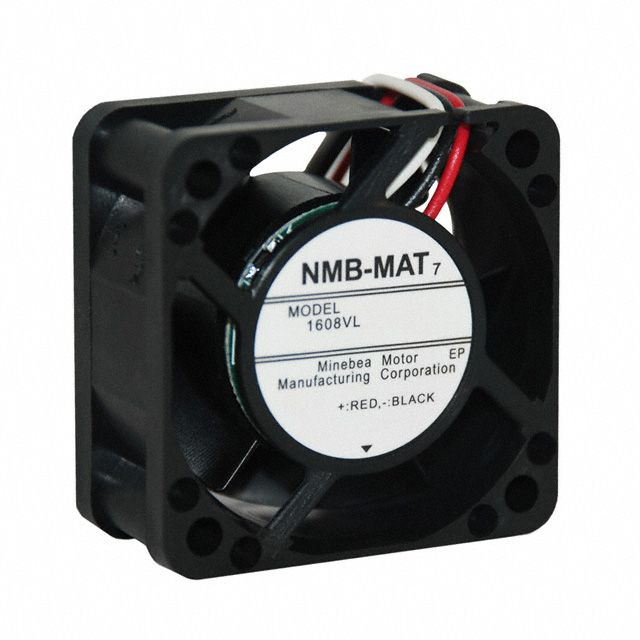

1608VL-05W-B59-B50

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 40.1X20MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fan Agency Approvals +1

1608VL-05W-B59-B50

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 40.1X20MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Fan Agency Approvals +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1608VL-05W-B59-B50

Air Flow	10.2 CFM
Air Flow	0.286 mł/min
Approval Agency	UL, VDE, CE
Bearing Type	Ball
Current Rating (Amps)	70 mA
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	31.4 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.68 W
RPM	8500 RPM
Size / Dimension [x]	40.1 mm
Size / Dimension [z]	40.1 mm
Static Pressure	76.6 Pa
Static Pressure	0.308 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	39.92 g
Weight	0.088 lb
Width [y]	20 mm

1608VL Series

Part	Fan Type	Approval Agency	Static Pressure	Static Pressure	Features	Material - Blade	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Weight	Weight	Material - Frame	Termination	Noise	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	RPM	Lifetime @ Temp.	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Air Flow	Air Flow
NMB TECHNOLOGIES 1608VL-04W-B59-B50	Tubeaxial	CE UL VDE	76.6 Pa	0.308 in H2O	Auto Restart Speed Sensor (Tach)	Plastic	Ball	13.2 VDC	7 V	1.32 W	39.92 g	0.088 lb	Plastic	3 Wire Leads	31.4 dB(A)	20 mm	70 °C	70 °C	-10 °C	-10 °C	110 mA	8500 RPM	40000 Hrs	40.1 mm	40.1 mm	12 VDC	10.2 CFM	0.286 mł/min
NMB TECHNOLOGIES 1608VL-05W-B59-B00	Tubeaxial	CE UL VDE	76.6 Pa	0.308 in H2O	Auto Restart Locked Rotor Sensor	Plastic	Ball	26.4 VDC	14 VDC	1.68 W	39.92 g	0.088 lb	Plastic	3 Wire Leads	31.4 dB(A)	20 mm	70 °C	70 °C	-10 °C	-10 °C	70 mA	8500 RPM	40000 Hrs	40.1 mm	40.1 mm	24 VDC	10.2 CFM	0.286 mł/min
NMB TECHNOLOGIES 1608VL-05W-B69-B50	Tubeaxial	CE UL VDE	99.3 Pa	0.399 in H2O	Speed Sensor (Tach)	Plastic	Ball	26.4 VDC	14 VDC	2.4 W	39.92 g	0.088 lb	Plastic	3 Wire Leads	34.6 dB(A)	20 mm	70 °C	70 °C	-10 °C	-10 °C	100 mA	9500 RPM	40000 Hrs	40.1 mm	40.1 mm	24 VDC	11.3 CFM	0.316 m³/min
NMB TECHNOLOGIES 1608VL-05W-B49-B50	Tubeaxial	CE UL VDE	58.8 Pa	0.236 in H2O	Auto Restart Speed Sensor (Tach)	Plastic	Ball	26.4 VDC	14 VDC	1.2 W	39.92 g	0.088 lb	Plastic	3 Wire Leads	29 dB(A)	20 mm	70 °C	70 °C	-10 °C	-10 °C	50 mA	7500 RPM	40000 Hrs	40.1 mm	40.1 mm	24 VDC	8.8 CFM	0.246 mł/min
NMB TECHNOLOGIES 1608VL-05W-B40-B00	Tubeaxial	CE UL VDE	58.8 Pa	0.236 in H2O	Auto Restart	Plastic	Ball	26.4 VDC	14 VDC	1.2 W	39.92 g	0.088 lb	Plastic	2 Wire Leads	29 dB(A)	20 mm	70 °C	70 °C	-10 °C	-10 °C	50 mA	7500 RPM	40000 Hrs	40.1 mm	40.1 mm	24 VDC	8.8 CFM	0.246 mł/min
NMB TECHNOLOGIES 1608VL-05W-B59-B50	Tubeaxial	CE UL VDE	76.6 Pa	0.308 in H2O	Auto Restart Speed Sensor (Tach)	Plastic	Ball	26.4 VDC	14 VDC	1.68 W	39.92 g	0.088 lb	Plastic	3 Wire Leads	31.4 dB(A)	20 mm	70 °C	70 °C	-10 °C	-10 °C	70 mA	8500 RPM	40000 Hrs	40.1 mm	40.1 mm	24 VDC	10.2 CFM	0.286 mł/min
NMB TECHNOLOGIES 1608VL-04W-B60-B00	Tubeaxial	CE UL VDE	99.3 Pa	0.399 in H2O	Auto Restart	Plastic	Ball	13.2 VDC	7 V	1.56 W	39.92 g	0.088 lb	Plastic	2 Wire Leads	34.6 dB(A)	20 mm	70 °C	70 °C	-10 °C	-10 °C		9500 RPM	40000 Hrs	40.1 mm	40.1 mm	12 VDC	11.3 CFM	0.316 m³/min
NMB TECHNOLOGIES 1608VL-04W-B50-B00	Tubeaxial	CE UL VDE	76.6 Pa	0.308 in H2O	Auto Restart	Plastic	Ball	13.2 VDC	7 V	1.32 W	39.92 g	0.088 lb	Plastic	2 Wire Leads	31.4 dB(A)	20 mm	70 °C	70 °C	-10 °C	-10 °C	110 mA	8500 RPM	40000 Hrs	40.1 mm	40.1 mm	12 VDC	10.2 CFM	0.286 mł/min
NMB TECHNOLOGIES 1608VL-04W-B69-B00	Tubeaxial	CE UL VDE	99.3 Pa	0.399 in H2O	Auto Restart Locked Rotor Sensor	Plastic	Ball	13.2 VDC	7 V	1.56 W	39.92 g	0.088 lb	Plastic	3 Wire Leads	34.6 dB(A)	20 mm	70 °C	70 °C	-10 °C	-10 °C		9500 RPM	40000 Hrs	40.1 mm	40.1 mm	12 VDC	11.3 CFM	0.316 m³/min
NMB TECHNOLOGIES 1608VL-04W-B40-B00	Tubeaxial	CE UL VDE	58.8 Pa	0.236 in H2O	Auto Restart	Plastic	Ball	13.2 VDC	7 V	1.02 W	39.92 g	0.088 lb	Plastic	2 Wire Leads	29 dB(A)	20 mm	70 °C	70 °C	-10 °C	-10 °C	85 mA	7500 RPM	40000 Hrs	40.1 mm	40.1 mm	12 VDC	8.8 CFM	0.246 mł/min

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1608VL Series

Fan Tubeaxial 24VDC Square - 40.1mm L x 40.1mm H Ball 10.2 CFM (0.286m³/min) 3 Wire Leads
