Q-0304F00051.5M

Active

Amphenol Custom Cable

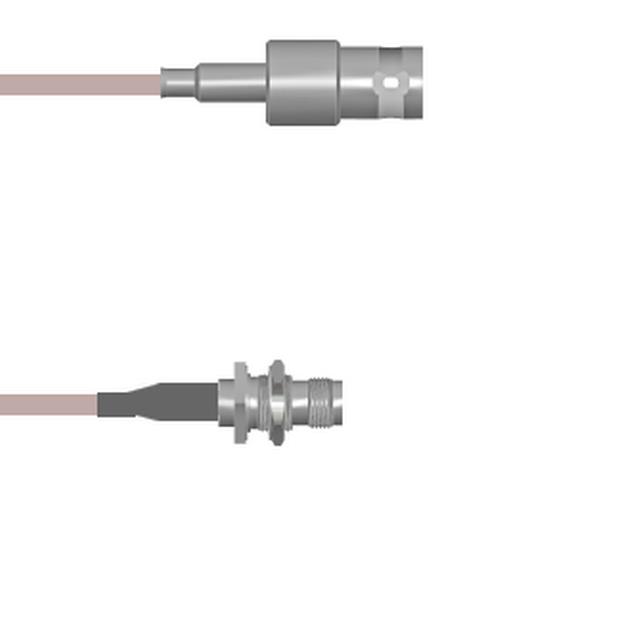

CBL ASSY BNC-TNC JACK-JACK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0304F00051.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-JACK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0304F00051.5M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0304F0 Series

Part	Length	Length	2nd Contact Gender	Features	Color	Overall Impedance	Style	Frequency - Max [Max]	1st Connector Mounting Type	Cable Type	1st Connector	1st Contact Gender	2nd Connector	2nd Connector Mounting Type	2nd Connector Mounting Feature	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0304F0005036i	91.44 cm	36 in	Female	Shielded	Copper	50 Ohms	BNC to TNC	4 GHz	Free Hanging (In-Line)	RG-316	BNC Jack	Female	TNC Jack	Panel Mount	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0304F0003006i	152.4 mm	6 in	Female	Shielded	Black	50 Ohms	BNC to TNC	4 GHz	Free Hanging (In-Line)	RG-174	BNC Jack	Female	TNC Jack	Panel Mount	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0304F0003024i	609.6 mm	24 "	Female	Shielded	Black	50 Ohms	BNC to TNC	4 GHz	Free Hanging (In-Line)	RG-174	BNC Jack	Female	TNC Jack	Panel Mount	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0304F0003003i	76.2 mm	3 in	Female	Shielded	Black	50 Ohms	BNC to TNC	4 GHz	Free Hanging (In-Line)	RG-174	BNC Jack	Female	TNC Jack	Panel Mount	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0304F0003003M	3 m	118.1 in	Female	Shielded	Black	50 Ohms	BNC to TNC	4 GHz	Free Hanging (In-Line)	RG-174	BNC Jack	Female	TNC Jack	Panel Mount	Bulkhead - Front Side Nut	9.8 '
Amphenol Custom Cable Q-0304F00050.5M	50 cm	19.69 "	Female	Shielded	Copper	50 Ohms	BNC to TNC	4 GHz	Free Hanging (In-Line)	RG-316	BNC Jack	Female	TNC Jack	Panel Mount	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0304F00031.5M	1.5 m	59.1 in	Female	Shielded	Black	50 Ohms	BNC to TNC	4 GHz	Free Hanging (In-Line)	RG-174	BNC Jack	Female	TNC Jack	Panel Mount	Bulkhead - Front Side Nut	4.9 ft
Amphenol Custom Cable Q-0304F0003.25M			Female	Shielded	Black	50 Ohms	BNC to TNC	4 GHz	Free Hanging (In-Line)	RG-174	BNC Jack	Female	TNC Jack	Panel Mount	Bulkhead - Front Side Nut		9.843 "	250 mm
Amphenol Custom Cable Q-0304F0003108i	2.7 m	108 in	Female	Shielded	Black	50 Ohms	BNC to TNC	4 GHz	Free Hanging (In-Line)	RG-174	BNC Jack	Female	TNC Jack	Panel Mount	Bulkhead - Front Side Nut	9 ft
Amphenol Custom Cable Q-0304F00051.5M	1.5 m	59.1 in	Female	Shielded	Copper	50 Ohms	BNC to TNC	4 GHz	Free Hanging (In-Line)	RG-316	BNC Jack	Female	TNC Jack	Panel Mount	Bulkhead - Front Side Nut	4.9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 57.58
		25	$ 53.61
		50	$ 49.64
		100	$ 46.24
		250	$ 43.41

Description

General part information

Q-0304F0 Series

Cable Assembly Coaxial BNC to TNC RG-316 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
