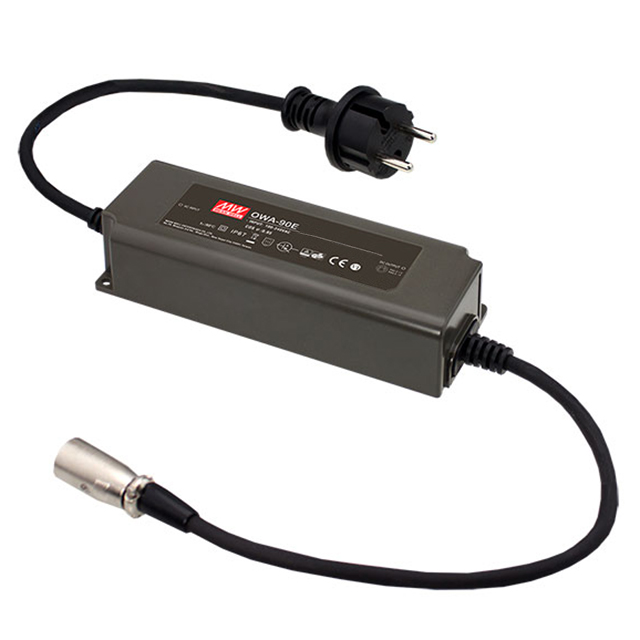

OWA-90E-36
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 36V 90W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OWA-90E-36
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 36V 90W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OWA-90E-36 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, GS |
| Cord Length | 0.3 m |
| Cord Length | 11.8 in |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | CEE 7/7 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 90 W |
| Region Utilized | Europe |
| Size / Dimension [x] | 171 mm |
| Size / Dimension [x] | 6.73 in |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [z] | 37.5 mm |
| Size / Dimension [z] | 1.48 " |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 46.89 | |
| 5 | $ 43.47 | |||
| 10 | $ 42.08 | |||
| 25 | $ 40.31 | |||
Description
General part information
OWA-90E Series
36V 90 W AC/DC External Desktop (Class II) Adapter Cord Input
