FR20C04VBDN

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	FR20C04VBDN

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Contact Type	Connector Type	Insulation Material	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Mounting Type	Contact Shape	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Material	Termination	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Finish - Mating
METZ CONNECT USA Inc. FR20C04VBDN	Female Socket	Receptacle	Polyester Polyethylene Terephthalate (PET)	Push-Pull	0.091 in	2.3 mm	8	0.079 in	2 mm	Black	Through Hole	Square	Flash	-40 °C	105 ░C	All	Copper Alloy	Solder	4.3 mm	0.169 "	0.079 in	2 mm	2	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

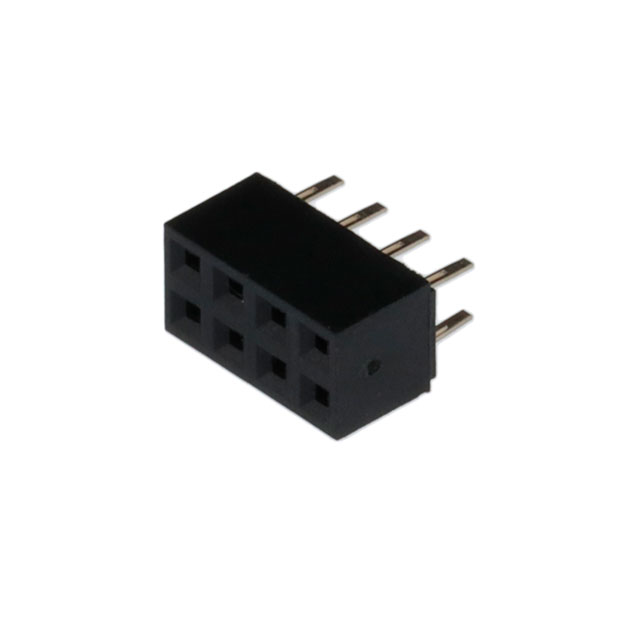

8 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
