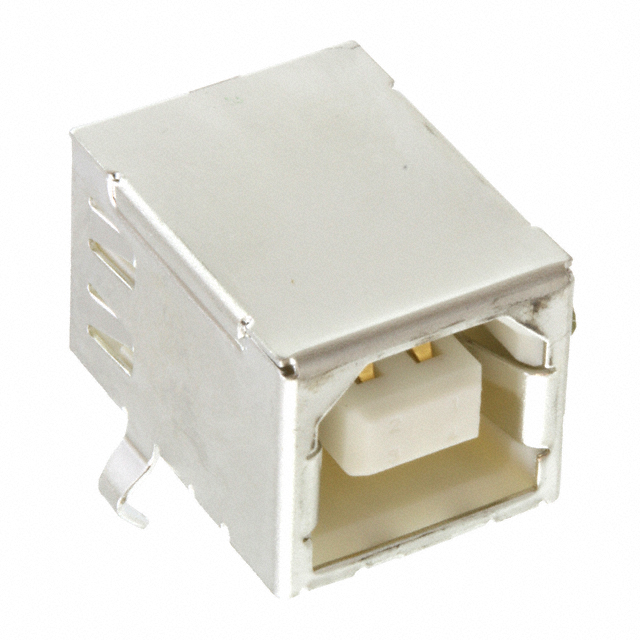

XM7B-0442
ActiveOmron Electronics Inc-EMC Div
CONN RCPT USB2.0 TYPEB 4POS R/A
Deep-Dive with AI
Search across all available documentation for this part.
XM7B-0442
ActiveOmron Electronics Inc-EMC Div
CONN RCPT USB2.0 TYPEB 4POS R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XM7B-0442 |
|---|---|
| Connector Type | USB-B |
| Contact Finish | Gold |
| Gender | Receptacle |
| Insulation Color | White |
| Mating Cycles | 1500 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Unshielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.90 | |
| 10 | $ 1.66 | |||
| 25 | $ 1.58 | |||
| 50 | $ 1.55 | |||
| 150 | $ 1.48 | |||
| 300 | $ 1.34 | |||
| 600 | $ 1.24 | |||
Description
General part information
XM7B Series
USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
