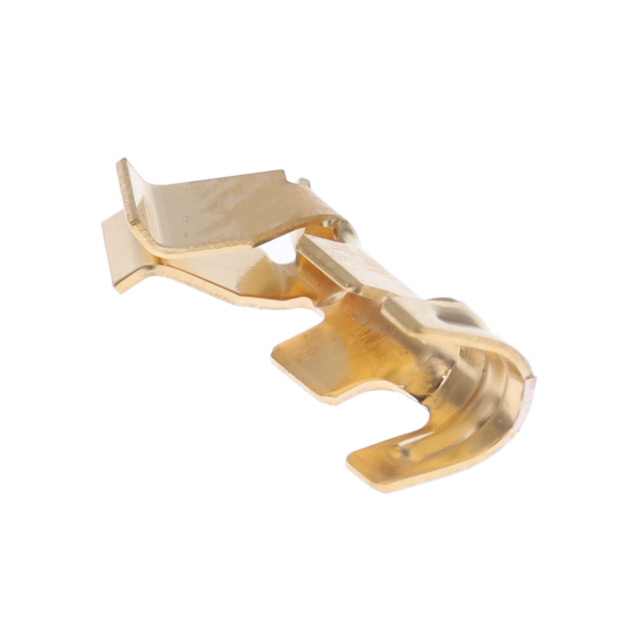

ST-JN5-S-C1B-2500-(A534G)
ActiveJAE Electronics
CONN SOCKET 18-22AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST-JN5-S-C1B-2500-(A534G) |
|---|---|
| Contact Finish | Gold |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.40 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 2500 | $ 0.21 | ||
| 5000 | $ 0.21 | |||
| 12500 | $ 0.19 | |||
| 25000 | $ 0.19 | |||
Description
General part information
ST-JN5-S Series
Socket Contact Gold 18-22 AWG Crimp Stamped
