AO7401

Alpha & Omega Semiconductor Inc.

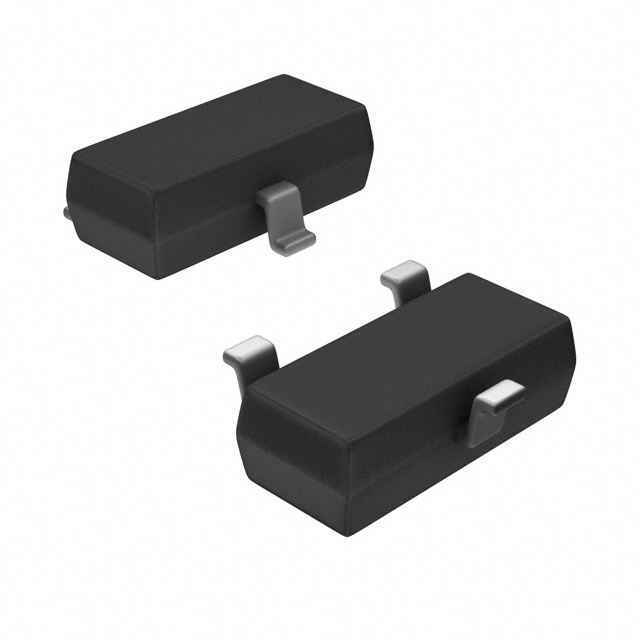

MOSFET P-CH 30V 1.4A SC70-3

Search across all available documentation for this part.

Alpha & Omega Semiconductor Inc.

MOSFET P-CH 30V 1.4A SC70-3

Technical Specifications

Parameters and characteristics for this part

Specification	AO7401

Current - Continuous Drain (Id) @ 25°C	1.4 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On) [Max]	2.5 V
Drive Voltage (Max Rds On, Min Rds On) [Min]	10 V
FET Type	P-Channel
Gate Charge (Qg) (Max) @ Vgs	5.06 nC
Input Capacitance (Ciss) (Max) @ Vds	409 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-70, SOT-323
Power Dissipation (Max) [Max]	350 mW
Supplier Device Package	SC-70-3
Technology	MOSFET (Metal Oxide)
Vgs (Max)	12 V
Vgs(th) (Max) @ Id	1.4 V

Part	Drain to Source Voltage (Vdss)	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds	Technology	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Package / Case	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs [Max]	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	FET Type	Power Dissipation (Max) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Drive Voltage (Max Rds On, Min Rds On) [Max]	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs
Alpha & Omega Semiconductor Inc. AO7404	20 V	Surface Mount	1.8 V 4.5 V	SC-70-3	101 pF	MOSFET (Metal Oxide)	8 V	1.57 nC	SC-70 SOT-323	1 A	225 mOhm	800 mV	-55 °C	150 °C	N-Channel	350 mW
Alpha & Omega Semiconductor Inc. AO7401	30 V	Surface Mount		SC-70-3	409 pF	MOSFET (Metal Oxide)	12 V		SC-70 SOT-323	1.4 A		1.4 V	-55 °C	150 °C	P-Channel	350 mW	10 V	2.5 V	5.06 nC
Alpha & Omega Semiconductor Inc. AO7408L	20 V	Surface Mount	1.8 V 4.5 V	SC-70-6	320 pF	MOSFET (Metal Oxide)	8 V		6-TSSOP SC-88 SOT-363	2 A		1 V	-55 °C	150 °C	N-Channel	350 mW			4 nC	62 mOhm
