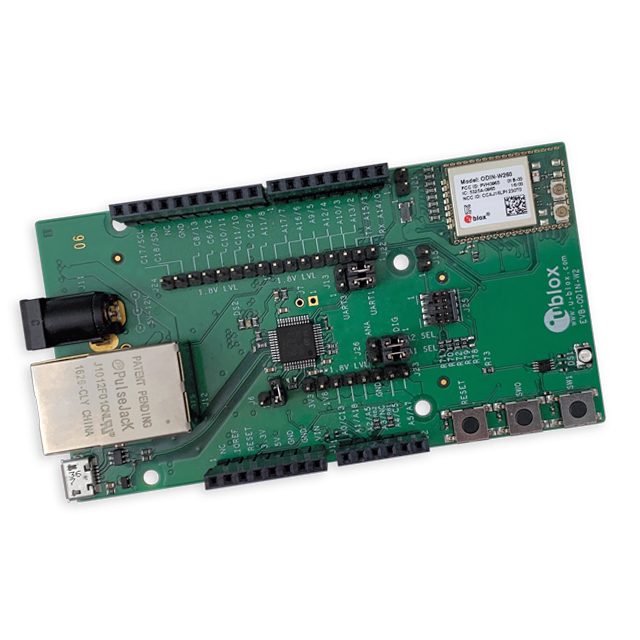

EVK-ODIN-W260

Active

u-blox

EVK FOR ODIN-W260 WITH ARM MBED

Search across all available documentation for this part.

Active

u-blox

EVK FOR ODIN-W260 WITH ARM MBED

Technical Specifications

Parameters and characteristics for this part

Specification	EVK-ODIN-W260

For Use With/Related Products	ODIN-W260
Frequency	5 GHz, 2.4 GHz
Supplied Contents	Cable(s), Board(s)
Type	Transceiver, Bluetooth® Smart Ready 4.x Dual Mode (BLE), 802.11 a/b/g/n (Wi-Fi, WiFi, WLAN)

Part	Data Rate	Antenna Type	Serial Interfaces	Package / Case	RF Family/Standard	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Modulation	Current - Receiving	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity	Protocol	Power - Output	Mounting Type	Frequency [Min]	Frequency [Max]	Supplied Contents	Frequency	For Use With/Related Products	Type	Utilized IC / Part	Memory Size
u-blox ODIN-W260-04B	130 Mbps	Antenna Not Included U.FL	ADC GPIO I2C SPI UART	52-SMD Module	Bluetooth WiFi	250 mA	85 °C	-40 °C	4DQPSK 8DPSK CCK DSSS GFSK OFDM	140 mA	3.6 V	3 V	-95 dBm	802.11a/b/g/n Bluetooth v4.0 +EDR	18 dBm	Surface Mount	2.4 GHz 5.18 GHz	2.5 GHz 5.825 GHz
u-blox EVK-ODIN-W260																			Board(s) Cable(s)	2.4 GHz 5 GHz	ODIN-W260	802.11 a/b/g/n (Wi-Fi WiFi WLAN) Bluetooth® Smart Ready 4.x Dual Mode (BLE) Transceiver
u-blox ODIN-W260-05B	130 Mbps	Antenna Not Included U.FL	ADC GPIO I2C SPI UART	52-SMD Module	Bluetooth WiFi	250 mA	85 °C	-40 °C	4DQPSK 8DPSK CCK DSSS GFSK OFDM	140 mA	3.6 V	3 V	-95 dBm	802.11a/b/g/n Bluetooth v4.0 +EDR	18 dBm	Surface Mount	2.4 GHz 5.18 GHz	2.5 GHz 5.825 GHz					STM32 TI WL8	2 MB 256 kB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 149.00

General part information

ODIN-W260 - Transceiver; 802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE) 2.4GHz, 5GHz Evaluation Board
