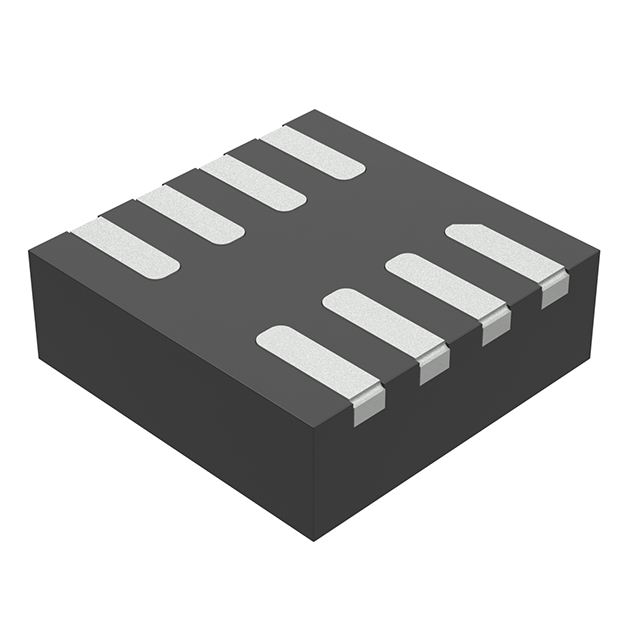

MPQ4423HGQE-AEC1-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 3A 8QFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPQ4423HGQE-AEC1-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 3A 8QFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ4423HGQE-AEC1-Z

Current - Output	3 A
Frequency - Switching	410 kHz
Function	Step-Down
Grade	Automotive
Mounting Type	Wettable Flank, Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	8-VDFN Exposed Pad
Qualification	AEC-Q100
Supplier Device Package	8-QFN (3x3)
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	4 V
Voltage - Output (Max) [Max]	32.4 V
Voltage - Output (Min/Fixed)	0.8 V

MPQ4423 Series

Part	Output Type	Mounting Type	Output Configuration	Voltage - Output (Max) [Max]	Frequency - Switching	Function	Package / Case	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Topology	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Qualification	Grade
MONOLITHIC POWER SYSTEMS (MPS) MPQ4423GQ-Z	Adjustable	Surface Mount	Positive	27 V	410 kHz	Step-Down	8-VDFN	3 A	-40 °C	125 ¯C	8-QFN (3x3)	Buck	0.8 V	4 V	1	30 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ4423HGQE-AEC1-Z	Adjustable	Surface Mount Wettable Flank	Positive	32.4 V	410 kHz	Step-Down	8-VDFN Exposed Pad	3 A	-40 °C	125 ¯C	8-QFN (3x3)	Buck	0.8 V	4 V	1	36 V	AEC-Q100	Automotive
MONOLITHIC POWER SYSTEMS (MPS) MPQ4423HGQE-AEC1-P	Adjustable	Surface Mount Wettable Flank	Positive	32.4 V	410 kHz	Step-Down	8-VDFN Exposed Pad	3 A	-40 °C	125 ¯C	8-QFN (3x3)	Buck	0.8 V	4 V	1	36 V	AEC-Q100	Automotive
MONOLITHIC POWER SYSTEMS (MPS) MPQ4423AGQ-AEC1-P	Adjustable	Surface Mount	Positive	32.4 V	410 kHz	Step-Down	8-VDFN	3 A	-40 °C	125 ¯C	8-QFN (3x3)	Buck	0.8 V	4 V	1	36 V	AEC-Q100	Automotive
MONOLITHIC POWER SYSTEMS (MPS) MPQ4423HGQ-P	Adjustable	Surface Mount	Positive	32.4 V	410 kHz	Step-Down	8-VDFN	3 A	-40 °C	125 ¯C	8-QFN (3x3)	Buck	0.8 V	4 V	1	36 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ4423AGQ-Z	Adjustable	Surface Mount	Positive	32.4 V	410 kHz	Step-Down	8-VDFN	3 A	-40 °C	125 ¯C	8-QFN (3x3)	Buck	0.8 V	4 V	1	36 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ4423AGQ-P	Adjustable	Surface Mount	Positive	32.4 V	410 kHz	Step-Down	8-VDFN	3 A	-40 °C	125 ¯C	8-QFN (3x3)	Buck	0.8 V	4 V	1	36 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ4423HGQ-AEC1-P	Adjustable	Surface Mount	Positive	32.4 V	410 kHz	Step-Down	8-VDFN	3 A	-40 °C	125 ¯C	8-QFN (3x3)	Buck	0.8 V	4 V	1	36 V	AEC-Q100	Automotive
MONOLITHIC POWER SYSTEMS (MPS) MPQ4423GQ-AEC1-Z	Adjustable	Surface Mount	Positive	27 V	410 kHz	Step-Down	8-VDFN	3 A	-40 °C	125 ¯C	8-QFN (3x3)	Buck	0.8 V	4 V	1	30 V	AEC-Q100	Automotive
MONOLITHIC POWER SYSTEMS (MPS) MPQ4423HGQ-Z	Adjustable	Surface Mount	Positive	32.4 V	410 kHz	Step-Down	8-VDFN	3 A	-40 °C	125 ¯C	8-QFN (3x3)	Buck	0.8 V	4 V	1	36 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.94

Description

General part information

MPQ4423 Series

Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-VDFN Exposed Pad

Documents

Technical documentation and resources
