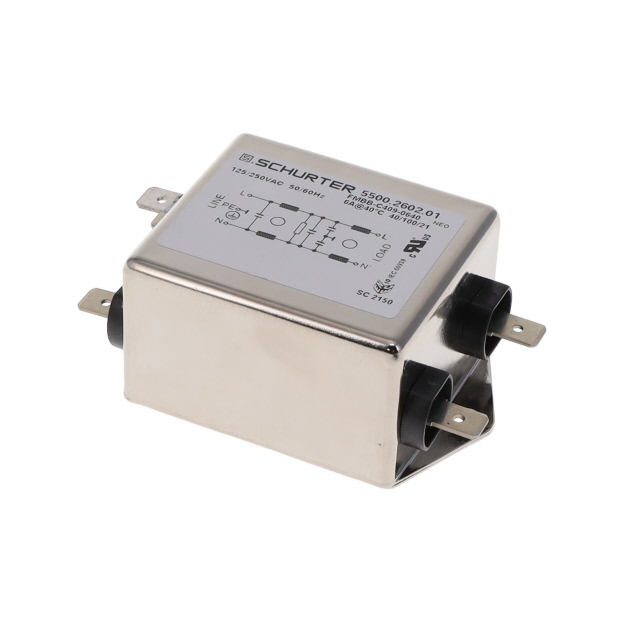

5500.2602.01

Active

SCHURTER Inc.

LINE FILTER 125V/250VAC 6A CHAS

Search across all available documentation for this part.

Active

SCHURTER Inc.

LINE FILTER 125V/250VAC 6A CHAS

Technical Specifications

Parameters and characteristics for this part

Specification	5500.2602.01

Applications	Power Drive Systems, Inverters
Approval Agency	cURus, VDE, ENEC
Configuration	Two Stage
Current	6 A
Filter Type	Single Phase
Inductance	970 µH
Mounting Type	Chassis Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Termination Style	Quick Connect
Voltage - Rated AC	125 V, 250 V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Configuration	Applications	Filter Type	Current	Approval Agency	Inductance	Voltage - Rated AC
SCHURTER Inc. 5500.2602.01	Chassis Mount	100 °C	-40 °C	Quick Connect	Two Stage	Inverters Power Drive Systems	Single Phase	6 A	cURus ENEC VDE	970 µH	125 V 250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 6 A 125V, 250V Two Stage Quick Connect
