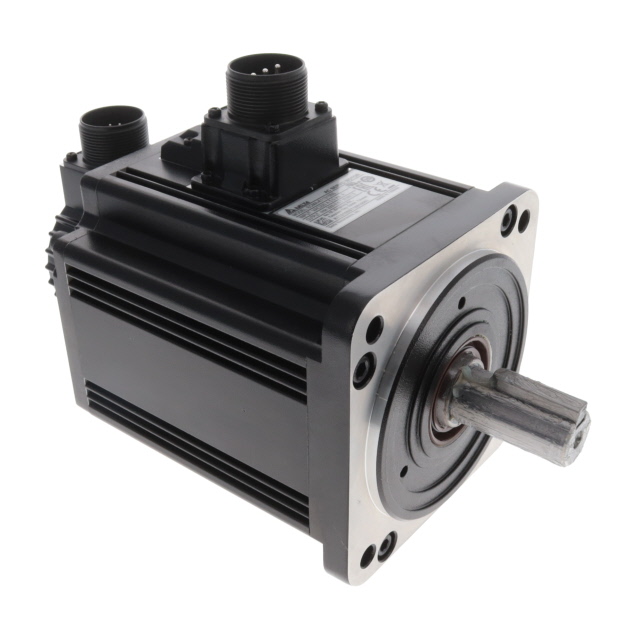

ECMA-K11315SS

Obsolete

Delta Electronics/Industrial Automation

SERVOMOTOR 2000 RPM 400V

Search across all available documentation for this part.

Obsolete

Delta Electronics/Industrial Automation

SERVOMOTOR 2000 RPM 400V

Technical Specifications

Parameters and characteristics for this part

Specification	ECMA-K11315SS

Approval Agency	CE, cURus
Diameter - Shaft [diameter]	0.866 in
Diameter - Shaft [diameter]	22 mm
Encoder Type	Incremental
Features	Oil Seal, Key, Brake
Function	Servomotor
Length - Shaft and Bearing [x]	55 mm
Length - Shaft and Bearing [x]	2.165 in
Mounting Hole Spacing	5.709 in
Mounting Hole Spacing	145 mm
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power - Rated	1500 W
RPM	2000 RPM
Size / Dimension [x]	5.118 in
Size / Dimension [x]	130 mm
Size / Dimension [y]	130 mm
Size / Dimension [y]	5.118 "
Termination Style	Cable with Connector
Torque - Max Momentary (oz-in / mNm)	21480 mNm
Torque - Max Momentary (oz-in / mNm)	3042 oz-in
Torque - Rated (oz-in / mNm)	1014 oz-in
Torque - Rated (oz-in / mNm)	7160 mNm
Type	AC Motor
Voltage - Rated	400 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Function	Type	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Power - Rated	Termination Style	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Encoder Type	RPM	Mounting Hole Spacing	Mounting Hole Spacing	Voltage - Rated	Features	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]
Delta Electronics/Industrial Automation ECMA-K11315RS	40 °C	0 °C	CE cURus	5.118 in	130 mm	5.118 "	130 mm	Servomotor	AC Motor	21480 mNm	3042 oz-in	0.866 in	22 mm	1500 W	Cable with Connector	1014 oz-in	7160 mNm	Incremental	2000 RPM	5.709 in	145 mm	400 VAC	Key Oil Seal	55 mm	2.165 in
Delta Electronics/Industrial Automation ECMA-K11315SS	40 °C	0 °C	CE cURus	5.118 in	130 mm	5.118 "	130 mm	Servomotor	AC Motor	21480 mNm	3042 oz-in	0.866 in	22 mm	1500 W	Cable with Connector	1014 oz-in	7160 mNm	Incremental	2000 RPM	5.709 in	145 mm	400 VAC	Brake Key Oil Seal	55 mm	2.165 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 990.00

General part information

AC Motor Servomotor 2000 RPM 1.5kW Incremental 400VAC
