ATS-HP-D6L200S45W-009

Active

Advanced Thermal Solutions Inc.

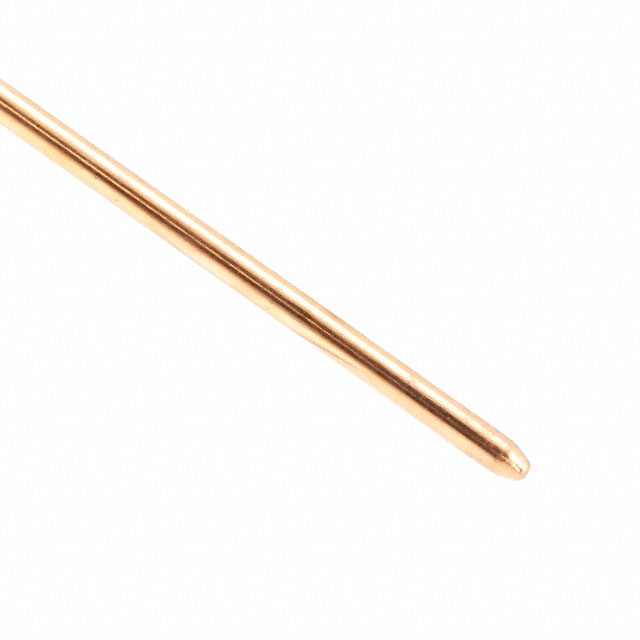

LIQUID COLD PLATES, LIQUID COOLING & HEAT PIPES HEAT PIPE, COPPER, HIGH PERFORMANCE, ROUND, SINTERED WICK, 200MM, 6MM DIA.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Pipes Datasheet +3

ATS-HP-D6L200S45W-009

Active

Advanced Thermal Solutions Inc.

LIQUID COLD PLATES, LIQUID COOLING & HEAT PIPES HEAT PIPE, COPPER, HIGH PERFORMANCE, ROUND, SINTERED WICK, 200MM, 6MM DIA.

Deep-Dive with AI

DocumentsHeat Pipes Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-HP-D6L200S45W-009

Attachment Method	Epoxy, Solder
Diameter [diameter]	6 mm
Diameter [diameter]	0.236 in
Length	7.874 in
Length	200 mm
Material	Copper
Operating Temperature [Max] [custom]	120 °C
Operating Temperature [Min] [custom]	30 °C
Shape	Round
Type	Heat Pipe
Wick Type	Sintered
Working Fluid	Distilled Water

ATS-HP-D9.5 Series

Liquid Cold Plates, Liquid Cooling & Heat Pipes Heat Pipe, Copper, High Performance, Round, Grooved Wick, 300mm, 6mm dia.

Part	Shape	Diameter	Diameter	Length [x]	Length [x]	Working Fluid	Attachment Method	Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Wick Type	Power - Cooling	Power - Cooling [custom]	Material	Length	Length	Diameter [diameter]	Diameter [diameter]
Advanced Thermal Solutions Inc. ATS-HP-D8L450S34W-153	Round	8 mm	0.315 in	450 mm	17.717 in	Distilled Water	Epoxy Solder	Heat Pipe	30 °C	120 °C	Sintered	43.3 W	450 mm	Copper
Advanced Thermal Solutions Inc. ATS-HP-D6L200S45W-009	Round					Distilled Water	Epoxy Solder	Heat Pipe	30 °C	120 °C	Sintered			Copper	7.874 in	200 mm	6 mm	0.236 in
Advanced Thermal Solutions Inc. ATS-HP-D5L100S80W-121	Round	5 mm	0.197 "	0.1 m	3.937 in	Distilled Water	Epoxy Solder	Heat Pipe	30 °C	120 °C	Sintered	100 mm 101.2 W		Copper
Advanced Thermal Solutions Inc. ATS-HP-D9.5L350S49W-160	Round	9.5 mm	0.374 in	350 mm	13.78 "	Distilled Water	Epoxy Solder	Heat Pipe	30 °C	120 °C	Sintered	62.3 W 350 mm		Copper
Advanced Thermal Solutions Inc. ATS-HP-D9.5L400S43W-161	Round	9.5 mm	0.374 in			Distilled Water	Epoxy Solder	Heat Pipe	30 °C	120 °C	Sintered	54.5 W		Copper	15.748 in	400 mm
Advanced Thermal Solutions Inc. ATS-HP-D3L100S18W-112	Round	3 mm	0.118 in	0.1 m	3.937 in	Distilled Water	Epoxy Solder	Heat Pipe	30 °C	120 °C	Sintered	23.4 W		Copper
Advanced Thermal Solutions Inc. ATS-HP-D5L300S25W-008	Round	5 mm	0.197 "	300 mm	11.811 in	Distilled Water	Epoxy Solder	Heat Pipe	30 °C	120 °C	Sintered	38 W 300 mm		Copper
Advanced Thermal Solutions Inc. ATS-HP-D7L350S37W-141	Round			350 mm	13.78 "	Distilled Water	Epoxy Solder	Heat Pipe	30 °C	120 °C	Sintered	46.3 W		Copper			7 mm	0.276 in
Advanced Thermal Solutions Inc. ATS-HP-D4L200G30W-001	Round					Distilled Water	Epoxy Solder	Heat Pipe	30 °C	120 °C	Grooved	41 W 200 mm		Copper	7.874 in	200 mm
Advanced Thermal Solutions Inc. ATS-HP-D10L350S57W-171	Round			350 mm	13.78 "	Distilled Water	Epoxy Solder	Heat Pipe	30 °C	120 °C	Sintered	71.3 W		Copper			10 mm	0.394 in
