CS20150B

Active

CUI Devices

OPEN LOOP CURRENT SENSOR AC CURRENT 15V 6-PIN

Search across all available documentation for this part.

Active

CUI Devices

OPEN LOOP CURRENT SENSOR AC CURRENT 15V 6-PIN

Technical Specifications

Parameters and characteristics for this part

Part	Current - Sensing	Package / Case	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Channels	Sensor Type	Output	For Measuring	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Frequency	Linearity	Polarization	Current - Supply (Max) [Max]
CUI Devices CS20150B	20 A	Module	2.4 %	14.25 V	15.75 V	1	Open Loop	Ratiometric Voltage	AC	-10 °C	75 ░C	Through Hole	DC ~ 40kHz	0.5 %	Bidirectional	25 mA
CUI Devices CS20150B	20 A	Module	2.4 %	14.25 V	15.75 V	1	Open Loop	Ratiometric Voltage	AC	-10 °C	75 ░C	Through Hole	DC ~ 40kHz	0.5 %	Bidirectional	25 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 3.14
Digikey	Tray	50	$ 19.03
		50	$ 19.03

General part information

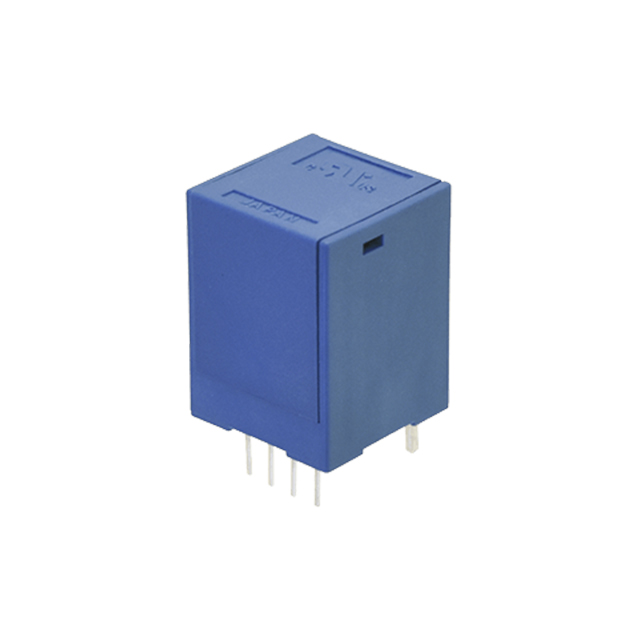

Current Sensor 20A 1 Channel Open Loop Bidirectional Module

Technical documentation and resources
