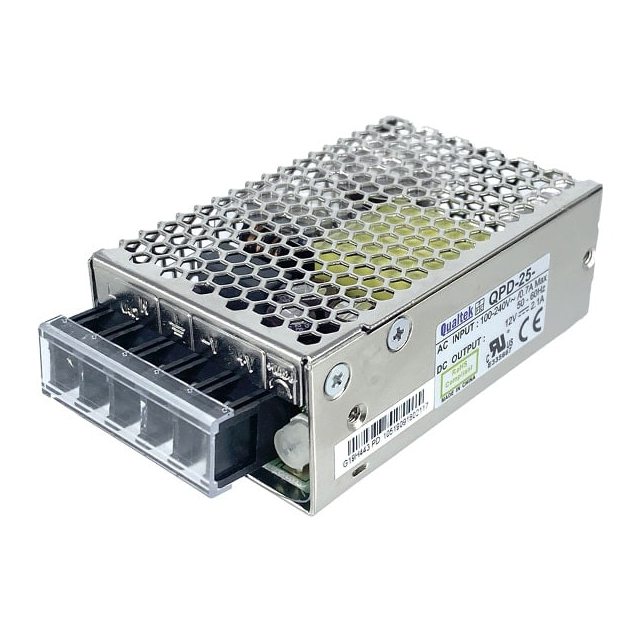

QPD-25-12

Active

Qualtek

AC/DC CONVERTER 12V 25W

Search across all available documentation for this part.

Active

Qualtek

AC/DC CONVERTER 12V 25W

Technical Specifications

Parameters and characteristics for this part

Specification	QPD-25-12

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	2.1 A
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	25 W
Size / Dimension [x]	3.11 in
Size / Dimension [x]	79 mm
Size / Dimension [y]	51 mm
Size / Dimension [y]	2.01 in
Size / Dimension [z]	1.1 in
Size / Dimension [z]	28 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC, 370 VDC
Voltage - Input [Min]	127 VDC, 88 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Mounting Type	Approval Agency	Number of Outputs	Current - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Type	Voltage - Output 1	Voltage - Isolation	Features	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency
Qualtek QPD-25-12	Chassis Mount	CE cURus	1	2.1 A	1.1 in	3.11 in	51 mm	28 mm	79 mm	2.01 in	264 VAC 370 VDC	88 VAC 127 VDC	25 W	Enclosed	12 V	3000 V	Adjustable Output DC Input Capable Universal Input	ITE (Commercial)	-25 °C	70 °C
Qualtek QPD-25-24	Chassis Mount	CE cURus	1	1.1 A	1.1 in	3.11 in	51 mm	28 mm	79 mm	2.01 in	264 VAC 370 VDC	88 VAC 127 VDC	25 W	Enclosed	24 V	3000 V	Adjustable Output DC Input Capable Universal Input	ITE (Commercial)	-25 °C	70 °C	84 %
Qualtek QPD-25-15	Chassis Mount	CE cURus	1	1.6 A	1.1 in	3.11 in	51 mm	28 mm	79 mm	2.01 in	264 VAC 370 VDC	88 VAC 127 VDC	25 W	Enclosed	15 V	3000 V	Adjustable Output DC Input Capable Universal Input	ITE (Commercial)	-25 °C	70 °C	83 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.58

General part information

Enclosed AC DC Converters 1 Output 12V 88 ~ 264 VAC, 127 ~ 370 VDC Input
