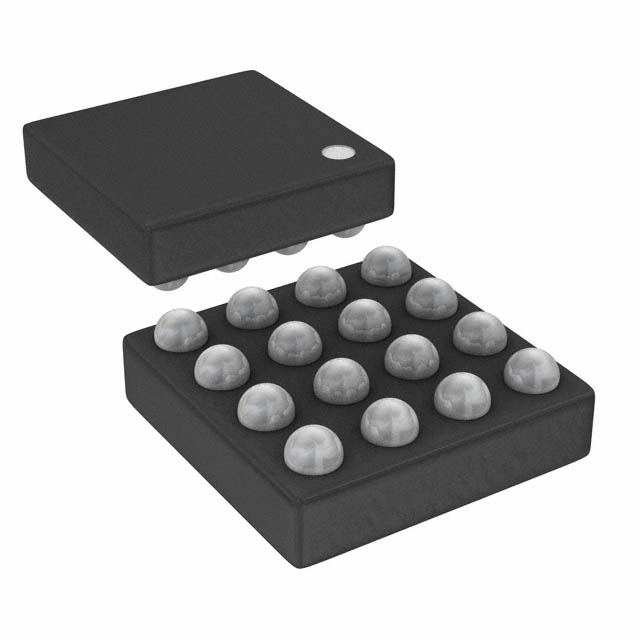

SSM2518CBZ-RL

Active

Analog Devices

IC AMP CLASS D STER 2.5W 16WLCSP

Search across all available documentation for this part.

Active

Analog Devices

IC AMP CLASS D STER 2.5W 16WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	SSM2518CBZ-RL

Features	I2S, Shutdown, I2C, Volume Control, Short-Circuit and Thermal Protection, Digital Inputs, Depop, Mute
Max Output Power x Channels @ Load	2.5 W
Max Output Power x Channels @ Load [x]	2
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	2-Channel (Stereo)
Supplier Device Package	16-WLCSP
Supplier Device Package [x]	2.21
Supplier Device Package [y]	2.21
Type	Class D
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Features	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]
Analog Devices SSM2518CBZ-RL	2.5 V	5.5 V	Surface Mount	Class D	85 °C	-40 °C	2-Channel (Stereo)	Depop Digital Inputs I2C I2S Mute Short-Circuit and Thermal Protection Shutdown Volume Control	2	2.5 W	16-WLCSP	2.21	2.21
Analog Devices SSM2518CBZ-R7	2.5 V	5.5 V	Surface Mount	Class D	85 °C	-40 °C	2-Channel (Stereo)	Depop Digital Inputs I2C I2S Mute Short-Circuit and Thermal Protection Shutdown Volume Control	2	2.5 W	16-WLCSP	2.21	2.21

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 2.30

General part information

Amplifier IC 2-Channel (Stereo) Class D 16-WLCSP (2.21x2.21)
