SRP1038A-4R7M

Active

Bourns Inc.

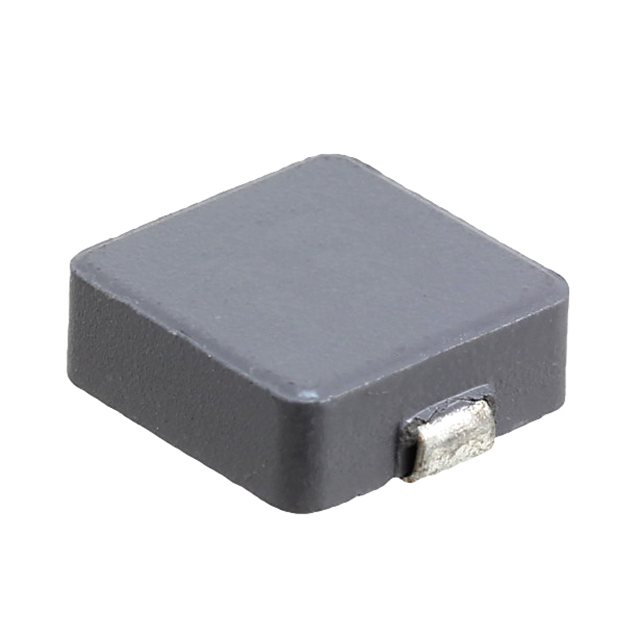

POWER INDUCTOR (SMD), 4.7 ΜH, 10 A, SHIELDED, 17 A, SRP1038A SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSRP Series Bulletin Datasheet

SRP1038A-4R7M

Active

Bourns Inc.

POWER INDUCTOR (SMD), 4.7 ΜH, 10 A, SHIELDED, 17 A, SRP1038A SERIES

Deep-Dive with AI

DocumentsSRP Series Bulletin Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRP1038A-4R7M

Current - Saturation (Isat)	17 A
Current Rating (Amps)	10 A
DC Resistance (DCR)	15.5 mOhm
Frequency - Self Resonant	16 MHz
Height - Seated (Max) [Max]	0.157 in
Height - Seated (Max) [Max]	4 mm
Inductance	4.7 ÁH
Inductance Frequency - Test	100 kHz
Material - Core	Carbonyl Powder
Mounting Type	Surface Mount
Package / Case	Nonstandard
Q @ Freq	100 kHz, 20
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	11 mm
Size / Dimension [x]	0.433 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Tolerance	20 %
Type	Wirewound, Drum Core

SRP1038A Series

Part	Tolerance	Inductance Frequency - Test	Frequency - Self Resonant	Mounting Type	Type	Ratings	Material - Core	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Package / Case	Q @ Freq	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Shielding	Current Rating (Amps)	DC Resistance (DCR)
Bourns Inc. SRP1038A-6R8M	20 %	100 kHz	13 MHz	Surface Mount	Drum Core Wirewound	AEC-Q200	Carbonyl Powder	23.3 mOhm	13.5 A	Nonstandard	20 100 kHz	6.8 µH	0.157 in	4 mm	11 mm	0.433 in	10 mm	0.394 in	Shielded	8.5 A
Bourns Inc. SRP1038A-8R2M	20 %	100 kHz	12 MHz	Surface Mount	Drum Core Wirewound	AEC-Q200	Carbonyl Powder	24 mOhm	12.5 A	Nonstandard	20 100 kHz	8.2 µH	0.157 in	4 mm	11 mm	0.433 in	10 mm	0.394 in	Shielded	8 A
Bourns Inc. SRP1038A-5R6M	20 %	100 kHz	15 MHz	Surface Mount	Drum Core Wirewound	AEC-Q200	Carbonyl Powder	19.3 mOhm	14 A	Nonstandard	20 100 kHz	5.6 µH	0.157 in	4 mm	11 mm	0.433 in	10 mm	0.394 in	Shielded
Bourns Inc. SRP1038A-R22M	20 %	100 kHz	155 MHz	Surface Mount	Drum Core Wirewound	AEC-Q200	Carbonyl Powder	1 mOhm	60 A	Nonstandard	10 100 kHz	220 nH	0.157 in	4 mm	11 mm	0.433 in	10 mm	0.394 in	Shielded	35 A
Bourns Inc. SRP1038A-4R7M	20 %	100 kHz	16 MHz	Surface Mount	Drum Core Wirewound	AEC-Q200	Carbonyl Powder		17 A	Nonstandard	20 100 kHz	4.7 ÁH	0.157 in	4 mm	11 mm	0.433 in	10 mm	0.394 in	Shielded	10 A	15.5 mOhm
Bourns Inc. SRP1038A-R56M	20 %	100 kHz		Surface Mount	Drum Core Wirewound	AEC-Q200	Carbonyl Powder	1.8 mOhm	40 A	Nonstandard	15 100 kHz	560 nH	0.157 in	4 mm	11 mm	0.433 in	10 mm	0.394 in	Shielded	25 A
Bourns Inc. SRP1038A-330M	20 %	100 kHz	6 MHz	Surface Mount	Drum Core Wirewound	AEC-Q200	Carbonyl Powder	112 mOhm	5 A	Nonstandard	20 100 kHz	33 µH	0.157 in	4 mm	11 mm	0.433 in	10 mm	0.394 in	Shielded	3.5 A
Bourns Inc. SRP1038A-R75M		100 kHz		Surface Mount	Drum Core Wirewound	AEC-Q200	Carbonyl Powder			Nonstandard		750 nH	0.157 in	4 mm	11 mm	0.433 in	10 mm	0.394 in	Shielded
