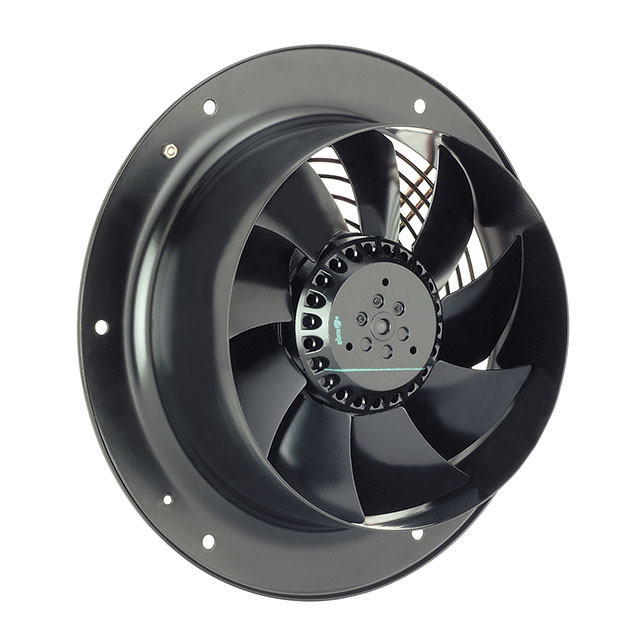

W2E200-CF02-01

Active

ebm-papst Inc.

FAN AXIAL 230VAC 200MM

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 230VAC 200MM

Technical Specifications

Parameters and characteristics for this part

Part	RPM	Material - Frame	Bearing Type	Voltage - Rated	Features	Termination	Material - Blade	Width [y]	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension	Size / Dimension [diameter]	Static Pressure	Static Pressure	Ingress Protection	Approval Agency	Current Rating (Amps)	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Noise	Air Flow	Air Flow
ebm-papst Inc. W2E200-CF02-02	3120 RPM	Steel	Ball	230 VAC	Capacitor Thermal Overload Protector (TOP)	4 Wire Leads with Splice Terminals	Steel	86.2 mm	Tubeaxial	75 °C	75 ░C	-25 °C	-25 °C	Round	280 mm	200 Pa	0.803 in H2O	IP44	CE EAC	0.28 A
ebm-papst Inc. W2E200-CF02-01	3120 RPM	Steel	Ball	230 VAC			Steel	80 mm	Tubeaxial	75 °C	75 ░C	-25 °C	-25 °C	Round	280 mm			IP44	CCC CE EAC	0.28 A	5.2 lbs	2.4 kg
ebm-papst Inc. W2E200-HH38-05	2800 RPM	Aluminum	Ball	230 VAC	Capacitor Thermal Overload Protector (TOP)	Terminal Block	Steel	88.7 mm	Tubeaxial	65 °C	65 °C	-25 °C	-25 °C					IP44	CE CSA UL VDE	360 mA			260 mm	260 mm
ebm-papst Inc. W2E200-CI38-73	2900 RPM	Steel	Ball	230 VAC	Capacitor Thermal Overload Protector (TOP)	4 Wire Leads with Splice Terminals	Steel	89 mm	Tubeaxial	65 °C	65 °C	-25 °C	-25 °C	Round	280 mm	150 Pa	0.602 in H2O	IP44	CE CSA UL	370 mA					83 W
ebm-papst Inc. W2E200-CH38-70			Ball	230 VAC		2 Wire Leads	Steel	80 mm	Tubeaxial					Round	280 mm				CSA UL VDE		3.1 lbs	1.4 kg			77 W	62 dB(A)	16.8 mł/min	600 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 266.23

General part information

Fan Tubeaxial 230VAC Round - 280mm Dia Ball
