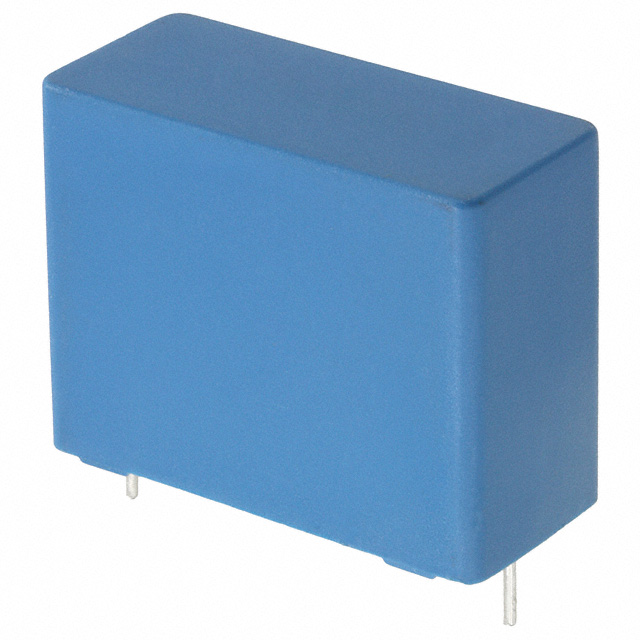

B32776E8206J000

Active

EPCOS - TDK Electronics

CAP FILM 20UF 5% 800VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

B32776E8206J000

Active

EPCOS - TDK Electronics

CAP FILM 20UF 5% 800VDC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B32776E8206J000

Applications	DC Link, DC Filtering
Capacitance	20 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	7.8 mOhms
Features	Long Life
Height - Seated (Max) [Max] [z]	37 mm
Height - Seated (Max) [Max] [z]	1.457 in
Lead Spacing	37.5 mm
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Size / Dimension [x]	42 mm
Size / Dimension [x]	1.654 in
Size / Dimension [y]	28 mm
Size / Dimension [y]	1.102 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	800 V

B32776E Series

Part	Termination	ESR (Equivalent Series Resistance)	Applications	Lead Spacing	Lead Spacing	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Features	Dielectric Material	Mounting Type	Tolerance	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
EPCOS - TDK Electronics B32776E5256K000	PC Pins	7.4 mOhms	DC Filtering DC Link	37.5 mm	1.476 in	Radial	42 mm	20 mm	0.787 in	1.654 in	575 V	Long Life	Metallized Polypropylene (PP)	Through Hole	10 %	25 µF	-40 °C	105 ░C	39.5 mm	1.555 "
EPCOS - TDK Electronics B32776E8146K000	PC Pins	11.5 mOhms	DC Filtering DC Link	37.5 mm	1.476 in	Radial	41.5 mm	18 mm	0.709 "	1.634 "	800 V	Long Life	Metallized Polypropylene (PP)	Through Hole	10 %	14 µF	-40 °C	105 ░C	32.5 mm	1.28 in
EPCOS - TDK Electronics B32776E5306K000	PC Pins	6.1 mOhm	DC Filtering DC Link	37.5 mm	1.476 in	Radial	42 mm	28 mm	1.102 in	1.654 in	575 V	Long Life	Metallized Polypropylene (PP)	Through Hole	10 %	30 µF	-40 °C	105 ░C	37 mm	1.457 in
EPCOS - TDK Electronics B32776E8206J000	PC Pins	7.8 mOhms	DC Filtering DC Link	37.5 mm	1.476 in	Radial	42 mm	28 mm	1.102 in	1.654 in	800 V	Long Life	Metallized Polypropylene (PP)	Through Hole	5 %	20 µF	-40 °C	105 ░C	37 mm	1.457 in
EPCOS - TDK Electronics B32776E8256J000	PC Pins	6.4 mOhms	DC Filtering DC Link	37.5 mm	1.476 in	Radial	42 mm	28 mm	1.102 in	1.654 in	800 V	Long Life	Metallized Polypropylene (PP)	Through Hole	5 %	25 µF	-40 °C	105 ░C	42.5 mm	1.673 in
EPCOS - TDK Electronics B32776E4306K000	PC Pins	7.3 mOhms	DC Filtering DC Link	37.5 mm	1.476 in	Radial	42 mm	20 mm	0.787 in	1.654 in	450 V	Long Life	Metallized Polypropylene (PP)	Through Hole	10 %	30 µF	-40 °C	105 ░C	39.5 mm	1.555 "
EPCOS - TDK Electronics B32776E4606K000	PC Pins	4 mOhms	DC Filtering DC Link	37.5 mm	1.476 in	Radial	42 mm	30 mm	1.181 in	1.654 in	450 V	Long Life	Metallized Polypropylene (PP)	Through Hole	10 %	60 µF	-40 °C	105 ░C	45 mm	1.772 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	440	$ 6.21

Description

General part information

B32776E Series

20 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial
