8NLV4/DN

Active

J.W. Winco

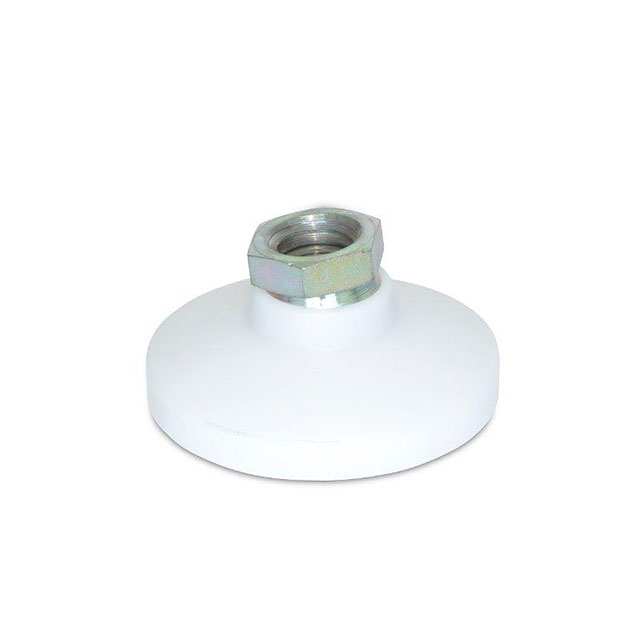

LEVELING MOUNT, TAPPED THREAD

Search across all available documentation for this part.

Active

J.W. Winco

LEVELING MOUNT, TAPPED THREAD

Technical Specifications

Parameters and characteristics for this part

Specification	8NLV4/DN

Material	Plastic
Mounting Type	Threaded Stud
Shape	Cylindrical, Recessed Center
Size / Dimension [diameter]	25.4 mm
Size / Dimension [diameter]	1 in
Thickness	3.58 mm
Thickness	0.141 in
Type	Foot

Part	Material	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Thickness	Thickness	Shape
J.W. Winco 8NLV4/DN	Plastic	Threaded Stud	25.4 mm	1 in	Foot	3.58 mm	0.141 in	Cylindrical Recessed Center

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.59

General part information

Foot Cylindrical, Recessed Center 1.000" Dia (25.40mm) Plastic
