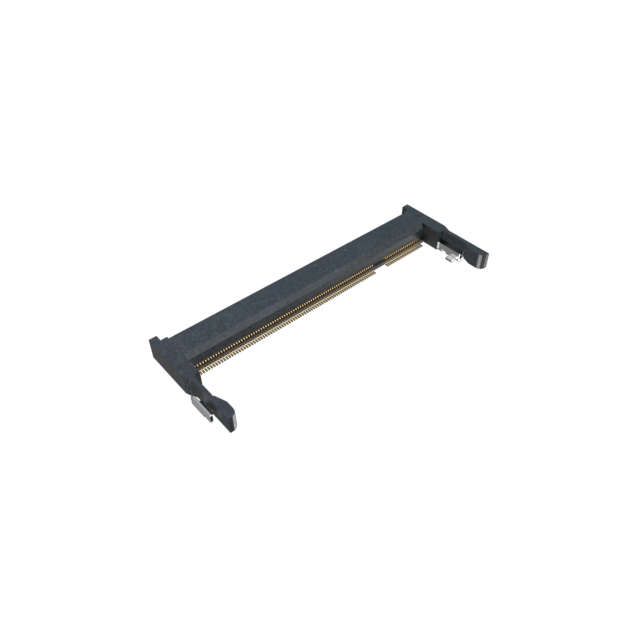

10033853-252FSLF

Active

Amphenol ICC (FCI)

CONN SKT SODIMM 200POS SMD

Deep-Dive with AI

Search across all available documentation for this part.

Documentsmemorysocket productpresentation Other Related Document Datasheet +2

10033853-252FSLF

Active

Amphenol ICC (FCI)

CONN SKT SODIMM 200POS SMD

Deep-Dive with AI

Documentsmemorysocket productpresentation Other Related Document Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10033853-252FSLF

Card Thickness	0.039 in
Card Thickness	1 mm
Color	Black
Connector Style	SODIMM
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Latches, Board Guide
Height [diameter]	0.205 in
Height [diameter]	5.2 mm
Insertion Angle	30 °
Memory Type	DDR2 SDRAM
Mounting Feature	Normal, Standard - Top
Mounting Type	Surface Mount
Standards	MO-274

10033853 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Memory Type	Insertion Angle	Contact Finish	Standards	Mounting Feature	Height [diameter]	Height [diameter]	Card Thickness	Card Thickness	Mounting Type	Color	Features	Connector Style	Contact Finish Thickness
Amphenol ICC (FCI) 10033853-252ASRLF	0.76 Ám	30 Áin	DDR2 SDRAM	30 °	Gold	MO-274	Normal Standard - Top	0.205 in	5.2 mm	0.039 in	1 mm	Surface Mount	Black	Board Guide Latches	SODIMM
Amphenol ICC (FCI) 10033853-052ASLF	0.76 Ám	30 Áin	DDR2 SDRAM	30 °	Gold	MO-274	Normal Standard - Top	0.205 in	5.2 mm	0.039 in	1 mm	Surface Mount	Black	Board Guide Latches	SODIMM
Amphenol ICC (FCI) 10033853-052TSRLF	0.3 Ám	11.8 Áin	DDR2 SDRAM	30 °	Gold	MO-274	Normal Standard - Top	0.205 in	5.2 mm	0.039 in	1 mm	Surface Mount	Black	Board Guide Latches	SODIMM
Amphenol ICC (FCI) 10033853-052TSLF	0.3 Ám	11.8 Áin	DDR2 SDRAM	30 °	Gold	MO-274	Normal Standard - Top	0.205 in	5.2 mm	0.039 in	1 mm	Surface Mount	Black	Board Guide Latches	SODIMM
Amphenol ICC (FCI) 10033853-152TSLF	0.3 Ám	11.8 Áin	DDR2 SDRAM	30 °	Gold	MO-274	Normal Standard - Top	0.205 in	5.2 mm	0.039 in	1 mm	Surface Mount	Black	Latches	SODIMM
Amphenol ICC (FCI) 10033853-252FSLF			DDR2 SDRAM	30 °	Gold	MO-274	Normal Standard - Top	0.205 in	5.2 mm	0.039 in	1 mm	Surface Mount	Black	Board Guide Latches	SODIMM	Flash
Amphenol ICC (FCI) 10033853-052FSLF			DDR2 SDRAM	30 °	Gold	MO-274	Normal Standard - Top	0.205 in	5.2 mm	0.039 in	1 mm	Surface Mount	Black	Board Guide Latches	SODIMM	Flash
Amphenol ICC (FCI) 10033853-352ASLF	0.76 Ám	30 Áin	DDR2 SDRAM	30 °	Gold	MO-274	Normal Standard - Top	0.205 in	5.2 mm	0.039 in	1 mm	Surface Mount	Black	Latches	SODIMM
Amphenol ICC (FCI) 10033853-252TSRLF	0.3 Ám	11.8 Áin	DDR2 SDRAM	30 °	Gold	MO-274	Normal Standard - Top	0.205 in	5.2 mm	0.039 in	1 mm	Surface Mount	Black	Board Guide Latches	SODIMM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2800	$ 4.49

Description

General part information

10033853 Series

200 Position SODIMM DDR2 SDRAM Socket Surface Mount
