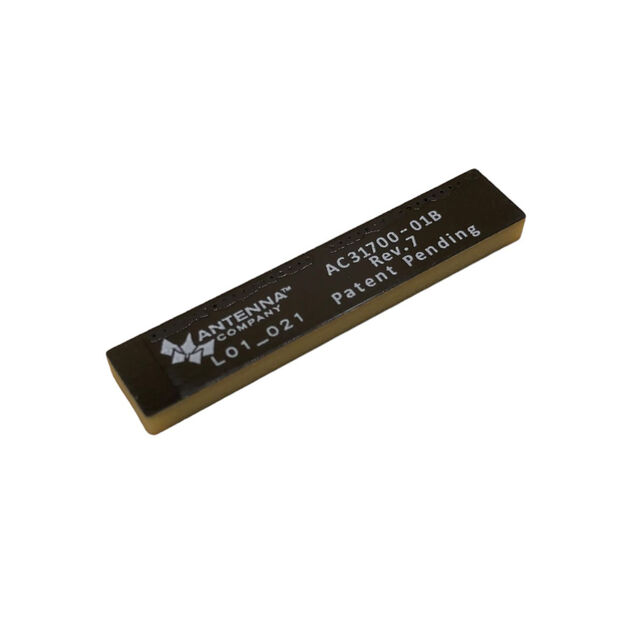

5G/4G SMD ANTENNA BOOSTER
Deep-Dive with AI
Search across all available documentation for this part.
AC31700-01B
ActiveThe Antenna Company
5G/4G SMD ANTENNA BOOSTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AC31700-01B |
|---|---|
| Antenna Type | Chip |
| Applications | GSM, UMTS, 5G, LTE, CDMA, Cellular, 4G, CAT-M1, LTE-M, NB-IoT |
| Frequency (Center/Band) | 2.4 GHz, 5 GHz, 850 MHz, 700 MHz, 900 MHz, 1.9 GHz, 3.5 GHz, 1.8 GHz, 2.1 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 894 MHz, 2.2 GHz, 803 MHz, 2.69 GHz |
| Frequency Range [Min] | 791 MHz, 2.3 GHz, 698 MHz, 1.695 GHz |
| Gain | 1 dBi, 5 dBi, 3 dBi, 0.5 dBi |
| Height (Max) | 3 mm |
| Height (Max) [Max] [z] | 0.118 in |
| Mounting Type | Surface Mount |
| Number of Bands | 4 |
| Power - Max [Max] | 2 W |
| Return Loss | -5.3 dB, -3.5 dB, -3.9 dB, -5.1 dB |
| RF Family/Standard | Cellular |
| Termination | Solder |
| VSWR | 3.4, 5, 3.5, 4.5 |
