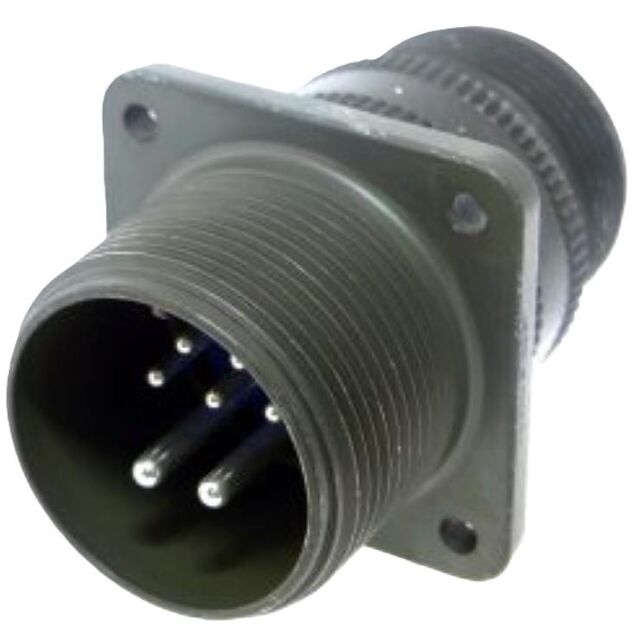

D38999/26KB35PN
ActiveSouriau-Sunbank by Eaton
STAINLESS STEEL D38999 SERIES II
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/26KB35PN
ActiveSouriau-Sunbank by Eaton
STAINLESS STEEL D38999 SERIES II
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/26KB35PN |
|---|---|
| Applications | Aerospace, Aviation, Military |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Features | Coupling Nut, Firewall Usage |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 13 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Passivated |
| Shell Material | Stainless Steel |
| Shell Size, MIL | B |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 500 VAC |
D38999/26KB Series
| Part | Mounting Type | Material Flammability Rating | Grade | Contact Finish - Mating | Ingress Protection | Connector Type | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Shell Material | Shielding | Shell Finish | Applications | Termination | Orientation | Color | Number of Positions | Qualification | Features | Contact Material | Insert Material | Shell Size, MIL | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Size | Note | Type | Contact Type | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Free Hanging (In-Line) | UL94 V-0 | Military | Gold | Environment Resistant | Male Pins Plug | Metal | 1.27 µm | 50 µin | 500 VAC | Stainless Steel | Shielded | Passivated | Aerospace Aviation Military | Crimp | N | Silver | 13 | MIL-DTL-38999 Series III | Coupling Nut Firewall Usage | Copper Alloy | Thermoplastic | B | -65 ░C | 200 °C | 5 A | |||||
Souriau-Sunbank by Eaton | Free Hanging (In-Line) | Military | Gold | IP67 - Dust Tight Waterproof | Female Sockets Plug | Metal | 1.27 µm | 50 µin | Stainless Steel | Shielded | Passivated | Aviation Marine Military | Crimp | N | 2 | MIL-DTL-38999 Series III | Coupling Nut | Copper Alloy | Thermoplastic | B | -65 ░C | 200 °C | 13 A | ||||||||
Souriau-Sunbank by Eaton | Free Hanging (In-Line) | Military | Gold | IP67 - Dust Tight Waterproof | Female Sockets Plug | Metal | 1.27 µm | 50 µin | Stainless Steel | Shielded | Passivated | Aviation Marine Military | Crimp | N | 7 | MIL-DTL-38999 Series III | Coupling Nut | Copper Alloy | Thermoplastic | B | -65 ░C | 200 °C | 7.5 A | ||||||||
Souriau-Sunbank by Eaton | Free Hanging (In-Line) | Military | Gold | IP67 - Dust Tight Waterproof | Female Sockets Plug | Metal | 1.27 µm | 50 µin | Stainless Steel | Shielded | Passivated | Aviation Marine Military | Crimp | N | MIL-DTL-38999 Series III | Coupling Nut | Copper Alloy | Thermoplastic | B | -65 ░C | 200 °C | 7.5 A | |||||||||
Souriau-Sunbank by Eaton | Free Hanging (In-Line) | Military | Environment Resistant | Plug Housing | Stainless Steel | Shielded | Passivated | N | MIL-DTL-38999 Series III | Coupling Nut | Thermoplastic | B | -65 ░C | 200 °C | 20 | Contacts Not Included | For Male Pins | Crimp | Circular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
D38999/26KB Series
13 Position Circular Connector Plug, Male Pins Crimp
