SLSD-71N200
ActiveAdvanced Photonix

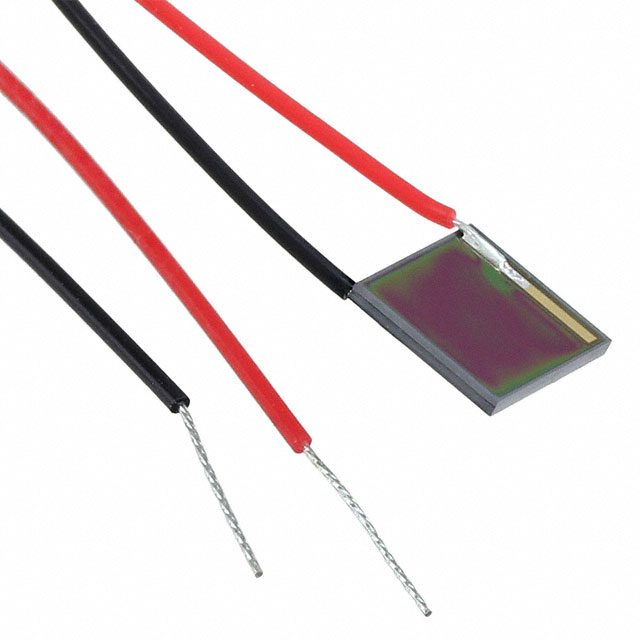

SENSOR PHOTODIODE 940NM BOX WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLSD-71N200
ActiveAdvanced Photonix
SENSOR PHOTODIODE 940NM BOX WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLSD-71N200 |
|---|---|
| Current - Dark (Typ) | 3.3 µA |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Box with Wire Leads |
| Responsivity @ nm | 0.55 A/W |
| Spectral Range [Max] [x] | 1100 nm |
| Spectral Range [Min] [x] | 400 nm |
| Viewing Angle | 120 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 20 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 5.07 | |
Description
General part information
SLSD-71 Series
Photodiode 940nm 120° Box with Wire Leads
