SJ-435107RS

Active

CUI Devices

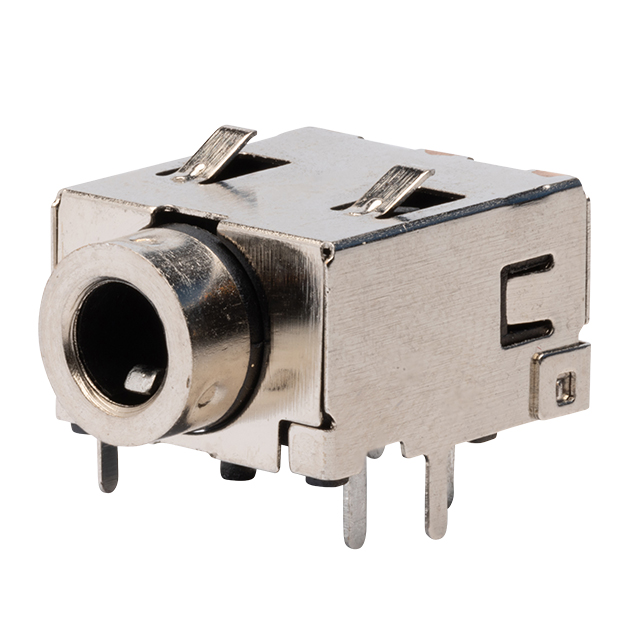

CONN JACK 4COND 3.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SJ-435107RS

Active

CUI Devices

CONN JACK 4COND 3.5MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJ-435107RS

Actual Diameter [diameter]	0.142 in
Actual Diameter [diameter]	3.6 mm
Body Color	Silver
Connector Type	Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Current Rating (Amps)	1 A
Features	Grounding Tab
Gender	Female
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	Single Switch
Mating Length/Depth	0.551 in
Mating Length/Depth	14 mm
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts [custom]	4
Number of Positions/Contacts [custom]	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Shielding	Shielded
Signal Lines	Stereo
Termination	Solder
Voltage - Rated	12 VDC

SJ-43 Series

Part	Body Color	Actual Diameter [diameter]	Actual Diameter [diameter]	Internal Switch(s)	Mounting Type	Contact Material - Plating [custom]	Mating Length/Depth	Mating Length/Depth	Gender	Connector Type	Termination	Signal Lines	Voltage - Rated	Current Rating (Amps)	Contact Material	Features	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Contact Material - Plating	Contact Material - Plating [custom]	Body Material	Includes	Contact Material - Plating [custom]	Panel Hole Size	Panel Hole Size
CUI Devices SJ-43516-SMT-TR	Black	0.142 in	3.6 mm	Two Switches	Surface Mount Right Angle	Silver	0.551 in	14 mm	Female	Phone Jack	Solder	Stereo	12 VDC	1 A	Brass Copper Alloy	Board Guide	Polyamide (PA6T) Nylon 6T	85 °C	-20 C	Unshielded	4	6	0.141 "	0.125 "	3.5 mm
CUI Devices SJ-435107RS	Silver	0.142 in	3.6 mm	Single Switch	Through Hole Right Angle		0.551 in	14 mm	Female	Phone Jack	Solder	Stereo	12 VDC	1 A	Copper Alloy	Grounding Tab		85 °C	-35 °C	Shielded	4	6	0.141 "	0.125 "	3.5 mm	Tin
CUI Devices SJ-43514	Black	0.142 in	3.6 mm		Through Hole Right Angle		0.551 in	14 mm	Female	Phone Jack	Solder	Stereo	12 VDC	1 A	Copper Alloy Phosphor Bronze			85 °C	-20 C	Unshielded	4	4	0.141 "	0.125 "	3.5 mm		Gold Tin
CUI Devices SJ-43614-SMT-TR	Black	0.142 in	3.6 mm		Board Cutout Right Angle Surface Mount	Gold	0.551 in	14 mm	Female	Phone Jack	Solder	Stereo	12 VDC	1 A	Copper Alloy		Polyamide (PA6T) Nylon 6T	85 °C	-20 C	Unshielded	4	4	0.141 "	0.125 "	3.5 mm
CUI Devices SJ-43515RS-SMT-TR	Black	0.142 in	3.6 mm	Single Switch	Surface Mount Right Angle	Silver	0.551 in	14 mm	Female	Phone Jack	Solder	Stereo	12 VDC	1 A	Brass Copper Alloy	Board Guide	Polyamide (PA6T) Nylon 6T	85 °C	-20 C	Unshielded	4	5	0.141 "	0.125 "	3.5 mm
CUI Devices SJ-43615RS-SMT-TR	Black	0.142 in	3.6 mm	Single Switch	Board Cutout Right Angle Surface Mount	Gold	0.551 in	14 mm	Female	Phone Jack	Solder	Stereo	12 VDC	1 A	Copper Alloy		Polyamide (PA6T) Nylon 6T	85 °C	-20 C	Unshielded	4	5	0.141 "	0.125 "	3.5 mm
CUI Devices SJ-43502PM	Black Silver	0.142 in	3.6 mm						Female	Phone Jack	Solder Eyelet(s)	Stereo		1 A	Copper Alloy	Mounting Hardware	Polybutylene Terephthalate (PBT) Glass Filled	70 °C	-20 C	Unshielded	4	4	0.141 "	0.125 "	3.5 mm			Copper Alloy	1 Connector 1 Nut	Nickel	7 mm	0.276 in
CUI Devices SJ-43516-SMT-TR-GR	Green	0.142 in	3.6 mm	Two Switches	Surface Mount Right Angle	Silver	0.551 in	14 mm	Female	Phone Jack	Solder	Stereo	12 VDC	1 A	Brass Copper Alloy	Board Guide	Polyamide (PA6T) Nylon 6T	85 °C	-20 C	Unshielded	4	6	0.141 "	0.125 "	3.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.80
		10	$ 1.56
		25	$ 1.50
		40	$ 1.46
		80	$ 1.40
		240	$ 1.26
		480	$ 1.16
		960	$ 1.00
		2400	$ 0.93

Description

General part information

SJ-43 Series

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
