W6A82-8PG-P-522

Active

Conxall/Switchcraft

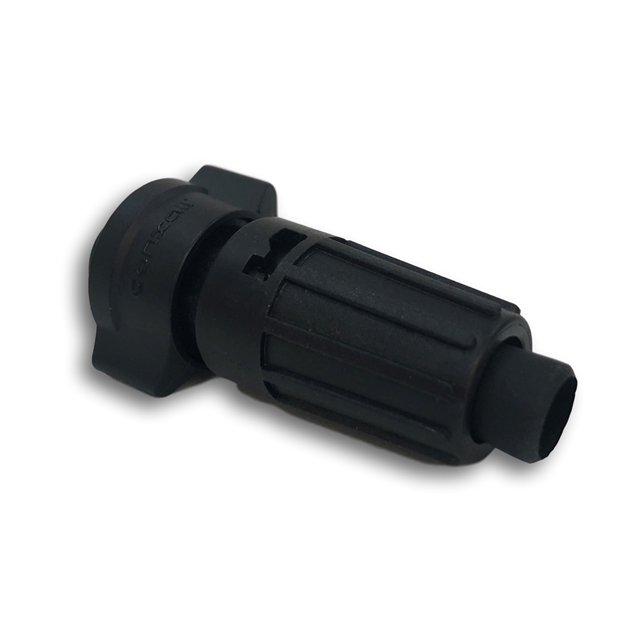

CONN PLUG MALE 6POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 6POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W6A82-8PG-P-522

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	6.35 mm
Cable Opening [Max] [diameter]	0.25 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	4
Number of Positions [custom]	6
Number of Positions [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Contact Finish - Mating	Ingress Protection	Color	Backshell Material, Plating	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Orientation	Connector Type	Features	Contact Material	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Fastening Type	Voltage Rating	Shielding	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Applications	Current Rating (Amps)	Mounting Type	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft W6A82-8PG-P-522	Gold	IP66 IP67 IP68	Black	Thermoplastic	6.35 mm	0.25 in	0.22 in	5.59 mm	Keyed	Male Pins Plug	Backshell Coupling Nut UV Resistant	Copper Alloy	Thermoplastic	85 °C	-40 °C	Plastic	Bayonet Lock	300 VAC	Unshielded	4	6	2	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Free Hanging (In-Line)
Conxall/Switchcraft W6A82-8PG-P-528	Gold	IP66 IP67 IP68	Black	Thermoplastic					Keyed	Male Pins Plug	Backshell Coupling Nut UV Resistant	Copper Alloy	Thermoplastic	85 °C	-40 °C	Plastic	Bayonet Lock	300 VAC	Unshielded	4	6	2	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Free Hanging (In-Line)	6.6 mm 7.11 mm	0.26 in 0.28 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 16.78

General part information

6 (4 + 2 Power) Position Circular Connector Plug, Male Pins Solder Cup

Technical documentation and resources

No documents available
