G-MRMO-031
ObsoleteTE Connectivity Measurement Specialties

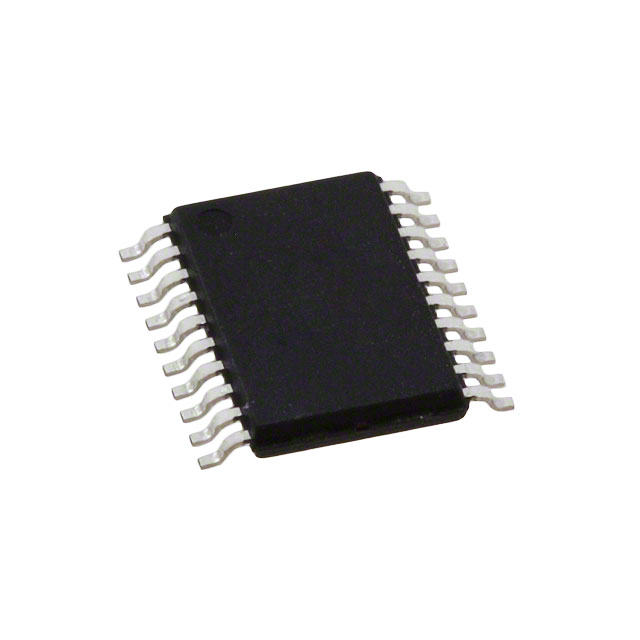

SENSOR MR I2C/PWM 20TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G-MRMO-031
ObsoleteTE Connectivity Measurement Specialties
SENSOR MR I2C/PWM 20TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G-MRMO-031 |
|---|---|
| Axis | Single |
| Current - Supply (Max) [Max] | 30 mA |
| Features | Programmable, Sleep Mode |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | I2C, PWM |
| Package / Case | 20-TSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Resolution | 13 b |
| Sensing Range | 540 mT |
| Technology | Magnetoresistive |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
G-MRMO Series
Magnetoresistive Sensor Single Axis
