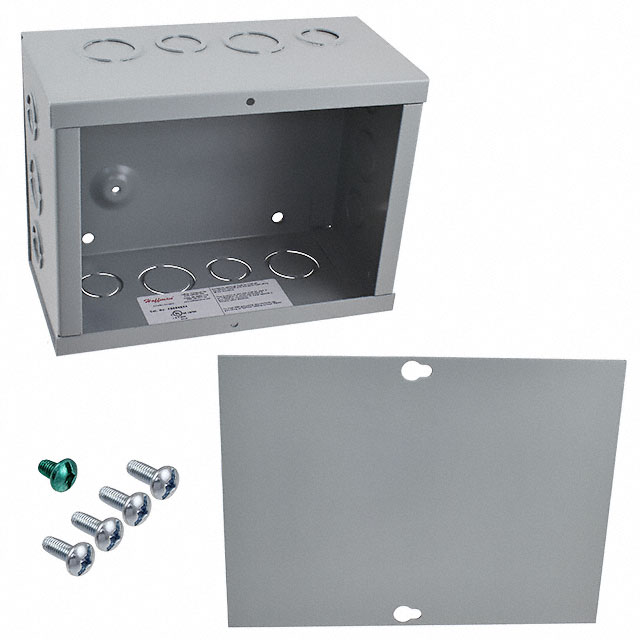

ASE8X6X4
ActiveHoffman Enclosures, Inc.
JUNCTION BOX STL 7.99"L X 5.98"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASE8X6X4
ActiveHoffman Enclosures, Inc.
JUNCTION BOX STL 7.99"L X 5.98"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASE8X6X4 |
|---|---|
| Area (L x W) | 308 cm˛ |
| Area (L x W) | 47.7 in˛ |
| Color | Gray |
| Container Type | Junction Box |
| Design | Cover Included |
| Features | Wall Mount, Knockouts |
| Height [z] | 4.016 in |
| Height [z] | 102 mm |
| Material | Metal, Steel |
| Ratings | NEMA 1, 50E, UL-50, IP30 |
| Size / Dimension [x] | 7.992 in, 203 mm |
| Size / Dimension [y] | 5.984 in, 152 mm |
| Weight | 1.6 kg |
| Weight | 3.5 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.16 | |
Description
General part information
ASE8X6 Series
Junction Box Metal, Steel Gray Cover Included 7.992" L x 5.984" W (203.00mm x 152.00mm) X 4.016" (102.00mm)
Documents
Technical documentation and resources
