104990123

Obsolete

Seeed Technology Co., Ltd

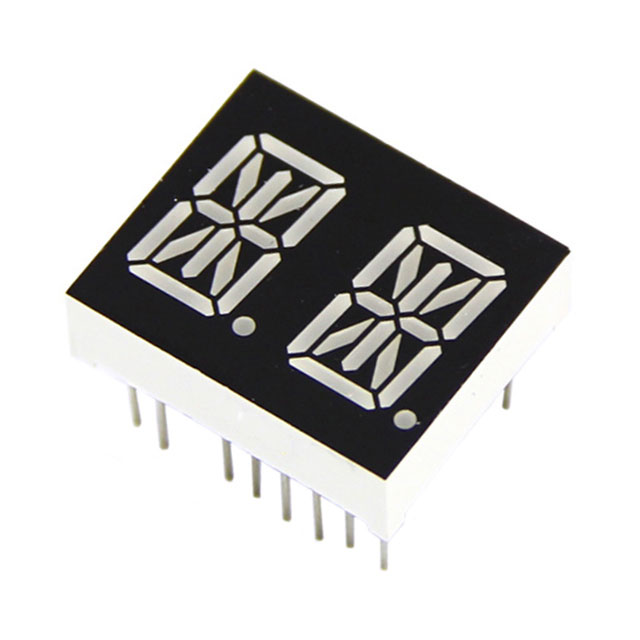

DISP 14SEG 0.54" DBL Y-G 18DIP

Deep-Dive with AI

Search across all available documentation for this part.

104990123

Obsolete

Seeed Technology Co., Ltd

DISP 14SEG 0.54" DBL Y-G 18DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	104990123

Color	Yellow-Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.54 in
Digit/Alpha Size	13.72 mm
Display Type	14-Segment, Alphanumeric
Millicandela Rating	18 mcd
Number of Characters	2
Package / Case	17 Leads, 15.24 mm, 0.6 in
Package / Case	18-DIP
Power Dissipation (Max) [Max]	50 mW
Size / Dimension [x]	25.1 mm
Size / Dimension [x]	0.988 in
Size / Dimension [y]	21.2 mm
Size / Dimension [y]	0.835 in
Size / Dimension [z]	8.5 mm
Size / Dimension [z]	0.335 "
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	571 nm

104990 Series

Part	Millicandela Rating	Color	Number of Characters	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Package / Case	Package / Case	Wavelength - Peak	Display Type	Current - Test	Voltage - Forward (Vf) (Typ)	Common Pin	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Number of Characters [custom]	Package / Case	Package / Case	Wavelength - Peak [custom]
Seeed Technology Co., Ltd 104990123	18 mcd	Yellow-Green	2	0.54 in	13.72 mm	50 mW	0.6 in 15.24 mm 17 Leads	18-DIP	571 nm	14-Segment Alphanumeric	20 mA	2.2 V	Common Anode	25.1 mm	21.2 mm	8.5 mm	0.835 in	0.335 "	0.988 in
Seeed Technology Co., Ltd 104990119	8 mcd	Red		0.8 in	20.32 mm	100 mW		18-DIP		16-Segment Alphanumeric	10 mA	1.8 V	Common Cathode	27.7 mm	20 mm	8.5 mm	0.787 in	0.335 "	1.091 in	1	15.24 mm	0.6 in	640 nm
Seeed Technology Co., Ltd 104990130	85.5 mcd	White		0.8 in	20.32 mm			18-DIP	465 nm	16-Segment Alphanumeric	10 mA	3 V	Common Anode	27.7 mm	20 mm	8.5 mm	0.787 in	0.335 "	1.091 in	1	15.24 mm	0.6 in
Seeed Technology Co., Ltd 104990122	25 mcd	Red	2	0.54 in	13.72 mm	50 mW	0.6 in 15.24 mm 17 Leads	18-DIP	633 nm	14-Segment Alphanumeric	20 mA	2 V	Common Cathode	25.1 mm	21.2 mm	8.5 mm	0.835 in	0.335 "	0.988 in
Seeed Technology Co., Ltd 104990121	105 mcd	Amber	2	0.54 in	13.72 mm	50 mW		18-DIP	603 nm	14-Segment Alphanumeric	20 mA	2 V	Common Cathode	25.1 mm	21.2 mm	8.5 mm	0.835 in	0.335 "	0.988 in		15.24 mm	0.6 in
Seeed Technology Co., Ltd 104990132		Yellow		0.8 in	20.32 mm			18-DIP		16-Segment Alphanumeric			Common Anode							1	15.24 mm	0.6 in
Seeed Technology Co., Ltd 104990131	250 mcd	Green		0.8 in	20.32 mm			18-DIP	517 nm	16-Segment Alphanumeric	10 mA	3.2 V	Common Anode	27.7 mm	20 mm	8.5 mm	0.787 in	0.335 "	1.091 in	1	15.24 mm	0.6 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

104990 Series

Display Modules - LED Character and Numeric Yellow-Green 14-Segment, Alphanumeric 2 Character Common Anode 2.2V 20mA 0.988" H x 0.835" W x 0.335" D (25.10mm x 21.20mm x 8.50mm) 18-DIP (0.600", 15.24mm), 17 Leads

Documents

Technical documentation and resources

No documents available
