FH62-13S-0.25SHW(10)

Active

Hirose Electric USA, Inc.

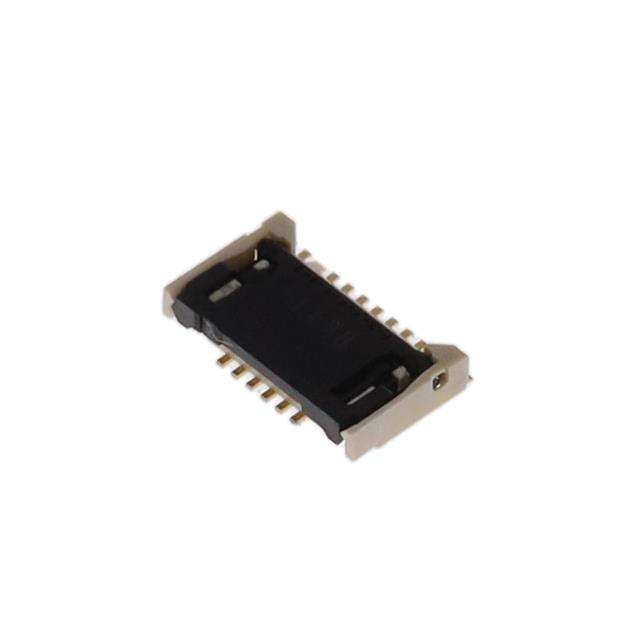

CONN FPC TOP 13POS 0.25MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFH62 Series Catalog

FH62-13S-0.25SHW(10)

Active

Hirose Electric USA, Inc.

CONN FPC TOP 13POS 0.25MM R/A

Deep-Dive with AI

DocumentsFH62 Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH62-13S-0.25SHW(10)

Actuator Color	Black
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Cable End Type	Notched
Connector/Contact Type	Contacts, Top
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Contact Material	Copper Alloy
Current Rating (Amps)	0.25 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	0.043 "
Height Above Board	1.08 mm
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	10
Mounting Type	Surface Mount, Right Angle
Number of Positions	13
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.01 in
Pitch [x]	0.25 mm
Termination	Solder
Voltage Rating	30 VDC

FH62 Series

Part	Mating Cycles	Connector/Contact Type	Contact Material	Actuator Color	Cable End Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Flat Flex Type	Material Flammability Rating	Locking Feature	Height Above Board	Height Above Board	Housing Color	FFC, FCB Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Pitch [x]	Pitch [x]	Contact Finish	Voltage Rating	Current Rating (Amps)	Number of Positions	Termination	Housing Material
Hirose Electric USA, Inc. FH62-21S-0.25SHW(10)	10	Contacts Top	Copper Alloy	Black	Notched	1.97 Áin	0.05 Ám	Surface Mount Right Angle	FPC	UL94 V-0	Backlock Flip Lock	0.043 "	1.08 mm	Beige	0.3 mm	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	0.01 in	0.25 mm	Gold	30 VDC	0.25 A	21	Solder	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH62-55S-0.25SHW(99)	10	Contacts Top	Copper Alloy	Black	Notched	1.97 Áin	0.05 Ám	Surface Mount Right Angle	FPC	UL94 V-0	Backlock Flip Lock	0.043 "	1.08 mm	Beige	0.3 mm	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	0.01 in	0.25 mm	Gold	30 VDC	0.25 A	55 positions	Solder	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH62-39S-0.25SHW(99)	10	Contacts Top	Copper Alloy	Black	Notched	1.97 Áin	0.05 Ám	Surface Mount Right Angle	FPC	UL94 V-0	Backlock Flip Lock	0.043 "	1.08 mm	Beige	0.3 mm	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	0.01 in	0.25 mm	Gold	30 VDC	0.25 A	39	Solder	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH62-17S-0.25SHW(10)	10	Contacts Top	Copper Alloy	Black	Notched	1.97 Áin	0.05 Ám	Surface Mount Right Angle	FPC	UL94 V-0	Backlock Flip Lock	0.043 "	1.08 mm	Beige	0.3 mm	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	0.01 in	0.25 mm	Gold	30 VDC	0.25 A		Solder	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH62-13S-0.25SHW(10)	10	Contacts Top	Copper Alloy	Black	Notched	1.97 Áin	0.05 Ám	Surface Mount Right Angle	FPC	UL94 V-0	Backlock Flip Lock	0.043 "	1.08 mm	Beige	0.3 mm	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	0.01 in	0.25 mm	Gold	30 VDC	0.25 A	13	Solder	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH62-21S-0.25SHW(99)	10	Contacts Top	Copper Alloy	Black	Notched	1.97 Áin	0.05 Ám	Surface Mount Right Angle	FPC	UL94 V-0	Backlock Flip Lock	0.043 "	1.08 mm	Beige	0.3 mm	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	0.01 in	0.25 mm	Gold	30 VDC	0.25 A	21	Solder	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH62-61S-0.25SHW(10)	10	Contacts Top	Copper Alloy	Black	Notched	1.97 Áin	0.05 Ám	Surface Mount Right Angle	FPC	UL94 V-0	Backlock Flip Lock	0.043 "	1.08 mm	Beige	0.3 mm	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	0.01 in	0.25 mm	Gold	30 VDC	0.25 A	61	Solder	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH62-31S-0.25SHW(10)	10	Contacts Top	Copper Alloy	Black	Notched	1.97 Áin	0.05 Ám	Surface Mount Right Angle	FPC	UL94 V-0	Backlock Flip Lock	0.043 "	1.08 mm	Beige	0.3 mm	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	0.01 in	0.25 mm	Gold	30 VDC	0.25 A	31	Solder	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH62-41S-0.25SHW(10)	10	Contacts Top	Copper Alloy	Black	Notched	1.97 Áin	0.05 Ám	Surface Mount Right Angle	FPC	UL94 V-0	Backlock Flip Lock	0.043 "	1.08 mm	Beige	0.3 mm	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	0.01 in	0.25 mm	Gold	30 VDC	0.25 A	41	Solder	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric USA, Inc. FH62-35S-0.25SHW	10	Contacts Top	Copper Alloy	Black	Notched	1.97 Áin	0.05 Ám	Surface Mount Right Angle	FPC	UL94 V-0	Backlock Flip Lock	0.043 "	1.08 mm	Beige	0.3 mm	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	0.01 in	0.25 mm	Gold	30 VDC	0.25 A	35	Solder	Liquid Crystal Polymer (LCP) Halogen Free
