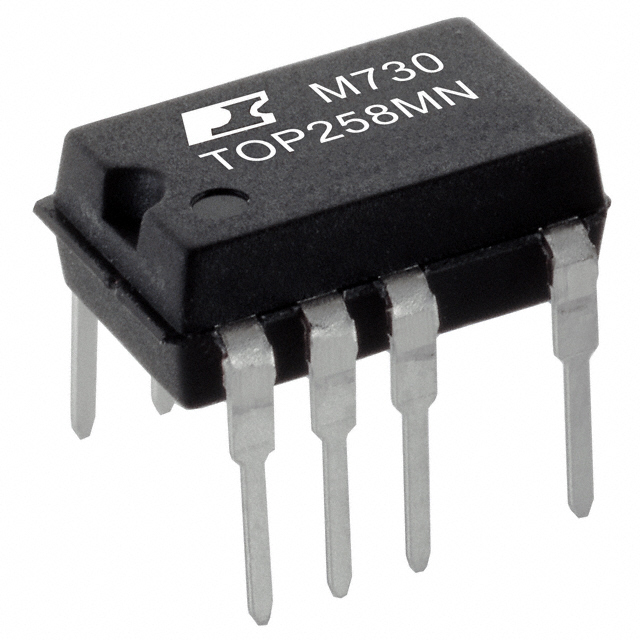

TOP258MN

Obsolete

Power Integrations

IC OFFLINE SW FLYBACK 10CSDIP

Search across all available documentation for this part.

Obsolete

Power Integrations

IC OFFLINE SW FLYBACK 10CSDIP

Technical Specifications

Parameters and characteristics for this part

Specification	TOP258MN

Duty Cycle	78 %
Fault Protection	Over Temperature, Current Limiting, Over Voltage
Frequency - Switching	66 kHz
Internal Switch(s)	True
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Isolation	Isolated
Package / Case	7.62 mm
Package / Case	9 PC Pad, 0.3 in
Package / Case	10-SDIP
Power (Watts)	48 W
Supplier Device Package	SDIP-10C
Topology	Flyback
Voltage - Breakdown	700 V

Part	Mounting Type	Frequency - Switching	Voltage - Breakdown	Package / Case	Power (Watts)	Supplier Device Package	Topology	Output Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Duty Cycle	Fault Protection	Package / Case	Package / Case
Power Integrations TOP258LN	Through Hole	66 kHz 132 kHz	700 V	7-SSIP 6 Leads Exposed Pad Formed Leads	122 W	eSIP-7F	Flyback	Isolated	150 °C	-40 °C	78 %	Current Limiting Over Temperature Over Voltage
Power Integrations TOP258MG	Through Hole	66 kHz	700 V	10-SDIP	48 W	SDIP-10C	Flyback	Isolated	150 °C	-40 °C	78 %	Current Limiting Over Temperature Over Voltage	7.62 mm	0.3 in 9 PC Pad
Power Integrations TOP258MN	Through Hole	66 kHz	700 V	10-SDIP	48 W	SDIP-10C	Flyback	Isolated	150 °C	-40 °C	78 %	Current Limiting Over Temperature Over Voltage	7.62 mm	0.3 in 9 PC Pad
Power Integrations TOP258EG	Through Hole	66 kHz 132 kHz	700 V	7-SSIP 6 Leads Exposed Pad Formed Leads		eSIP-7C	Flyback	Isolated	150 °C	-40 °C	78 %	Current Limiting Over Temperature Over Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Converter Offline Flyback Topology 66kHz SDIP-10C
