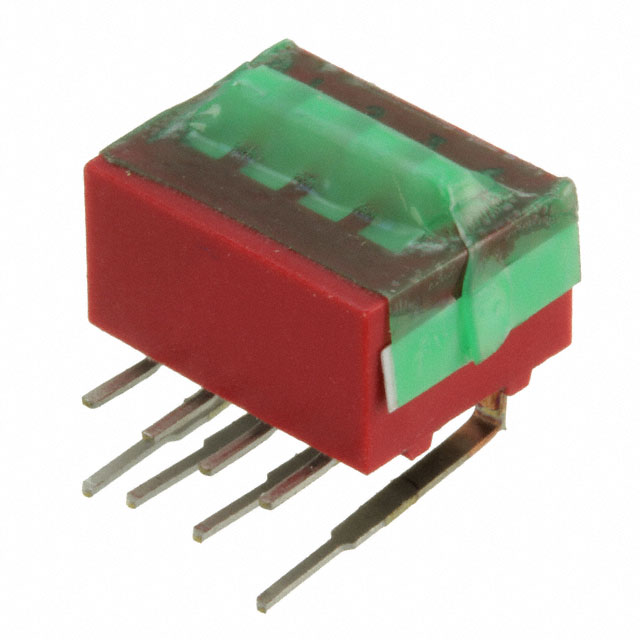

78B04SRAT

Active

Grayhill Inc.

4BIT SPST 30V 150MA PLUGIN DIP SWITCHES ROHS

Search across all available documentation for this part.

Active

Grayhill Inc.

4BIT SPST 30V 150MA PLUGIN DIP SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Mechanical Life	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Actuator Type	Features	Washable	Mounting Type	Voltage Rating	Contact Material	Number of Positions	Circuit	Body Material	Length	Length	Actuator Level
Grayhill Inc. 78B04SRAT	PC Pin	85 °C	-40 °C	10000 Cycles	2000 Cycles	0.1 in	Full	2.54 mm	Gold	Slide (Standard)	Tape Seal		Through Hole Right Angle	30 VDC	Copper Alloy	4	SPST	Plastic	0.48 in	12.19 mm	Raised

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 4 Position Through Hole, Right Angle Slide (Standard) Actuator 150mA 30VDC

Technical documentation and resources
