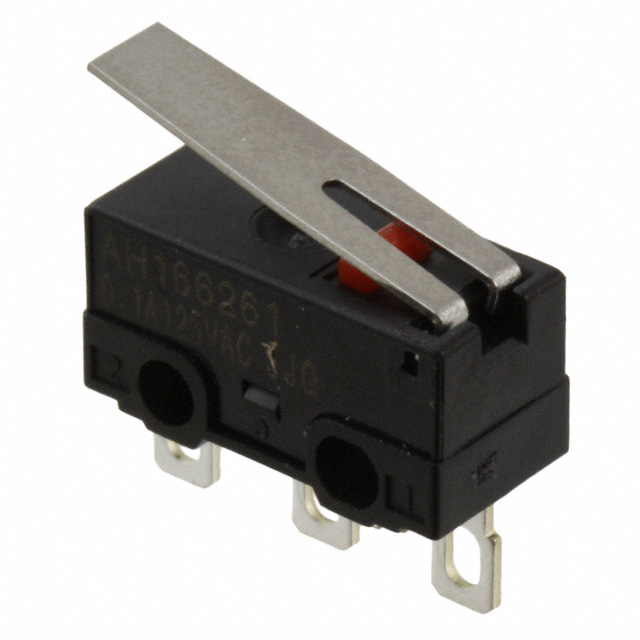

AH168261-A
ActivePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
AH168261-A
ActivePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AH168261-A |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 0.5 mm |
| Differential Travel | 0.02 in |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Position | 6.8 mm |
| Operating Position | 0.268 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.022 in |
| Overtravel | 0.55 mm |
| Pretravel | 2.1 mm |
| Pretravel | 0.083 in |
| Release Force | 2.5 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
