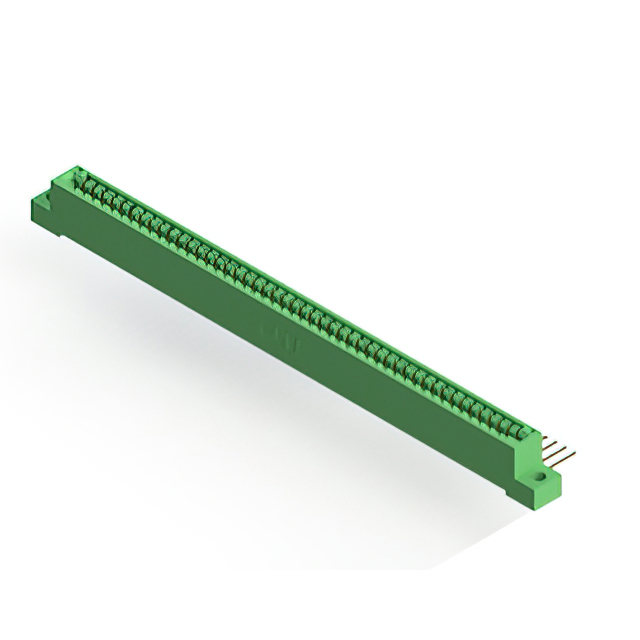

846-047-558-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 47POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-047-558-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 47POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-047-558-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Bay/Row [custom] | 47 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
846-047 Series
| Part | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Termination Rows | Gender | Number of Positions/Bay/Row [custom] | Card Type | Contact Type | Contact Finish | Mounting Type | Color | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 1 | Female | 47 | Non Specified - Single Edge | Cantilever | Gold | Through Hole | Green | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Copper Alloy | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | |||||
EDAC Inc. | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 1 | Female | 47 | Non Specified - Single Edge | Cantilever | Gold | Through Hole | Green | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Copper Alloy | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 1 | Female | 47 | Non Specified - Single Edge | Cantilever | Gold | Through Hole | Green | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Copper Alloy | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
EDAC Inc. | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 1 | Female | 47 | Non Specified - Single Edge | Cantilever | Gold | Through Hole | Green | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Copper Alloy | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 1 | Female | 47 | Non Specified - Single Edge | Cantilever | Gold | Through Hole Right Angle | Green | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Copper Alloy | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | ||
EDAC Inc. | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 1 | Female | 47 | Non Specified - Single Edge | Cantilever | Gold | Through Hole | Green | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Copper Alloy | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | ||
EDAC Inc. | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 1 | Female | 47 | Non Specified - Single Edge | Cantilever | Gold | Through Hole | Green | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Copper Alloy | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 3.25 mm | 0.128 in | Side Mount Opening Unthreaded | ||
EDAC Inc. | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 1 | Female | 47 | Non Specified - Single Edge | Cantilever | Gold | Through Hole Right Angle | Green | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Copper Alloy | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 1 | Female | 47 | Non Specified - Single Edge | Cantilever | Gold | Through Hole | Green | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Copper Alloy | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 1 | Female | 47 | Non Specified - Single Edge | Cantilever | Gold | Through Hole | Green | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Copper Alloy | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Flush Mount M3 Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-047 Series
47 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
