UT0W02255PH

Active

Souriau-Sunbank by Eaton

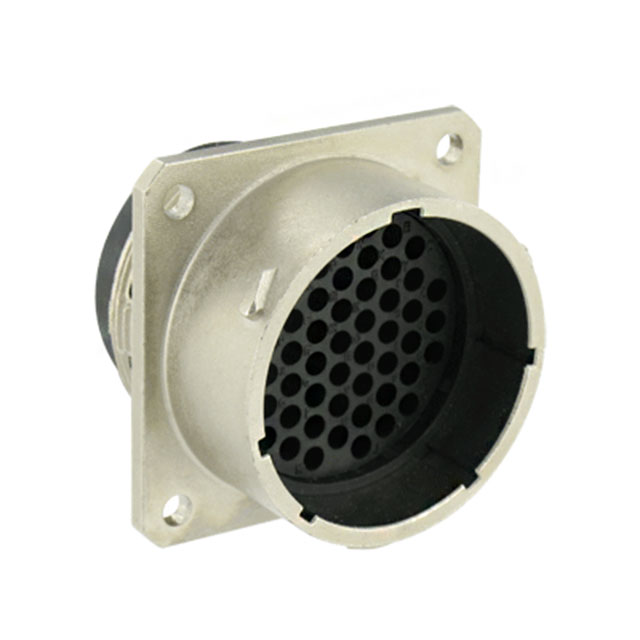

CONN RCPT HSNG MALE 55POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UT0W02255PH

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 55POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT0W02255PH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	55 positions
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	55
Shell Size - Insert [Min]	22
Shielding	Shielded
Type	For Male Pins

UT0W0 Series

Part	Contact Shape	Shell Material	Number of Positions	Fastening Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Material Flammability Rating	Housing Color	Type	Shell Finish	Insert Material	Contact Type	Note	Contact Size	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Ingress Protection	Orientation	Mounting Feature	Shielding	Shell Size - Insert
Souriau-Sunbank by Eaton UT0W02041SH	Circular	Zinc Alloy	41	Bayonet Lock	20	41	UL94 V-0	Silver	For Female Sockets	Nickel	Thermoplastic Glass Filled	Crimp	Contacts Not Included	20	-40 °C	105 ░C	Receptacle Housing	IP67 IP69K	N	Flange	Shielded
Souriau-Sunbank by Eaton UT0W02041SH6	Circular	Zinc Alloy	41	Bayonet Lock	20	41	UL94 V-0	Silver	For Female Sockets	Nickel	Thermoplastic Glass Filled	Crimp	Contacts Not Included	20	-40 °C	105 ░C	Receptacle Housing	IP68 IP69K	N	Flange	Shielded
Souriau-Sunbank by Eaton UT0W02041PH	Circular	Zinc Alloy	41	Bayonet Lock	20	41	UL94 V-0	Silver	For Male Pins	Nickel	Thermoplastic Glass Filled	Crimp	Contacts Not Included	20	-40 °C	105 ░C	Receptacle Housing	IP67 IP69K	N	Flange	Shielded
Souriau-Sunbank by Eaton UT0W01626PH6	Circular	Zinc Alloy	26	Bayonet Lock	16	26	UL94 V-0	Silver	For Male Pins	Nickel	Thermoplastic Glass Filled	Crimp	Contacts Not Included	20	-40 °C	105 ░C	Receptacle Housing	IP68 IP69K	N	Flange	Shielded
Souriau-Sunbank by Eaton UT0W01832SH	Circular	Zinc Alloy		Bayonet Lock	18	32	UL94 V-0	Silver	For Female Sockets	Nickel	Thermoplastic Glass Filled	Crimp	Contacts Not Included	20	-40 °C	105 ░C	Receptacle Housing	IP67 IP69K	N	Flange	Shielded
Souriau-Sunbank by Eaton UT0W01832PWH	Circular	Zinc Alloy		Bayonet Lock	18	32	UL94 V-0	Silver	For Male Pins	Nickel	Thermoplastic Glass Filled	Crimp	Contacts Not Included	20	-40 °C	105 ░C	Receptacle Housing	IP67 IP69K	W	Flange	Shielded
Souriau-Sunbank by Eaton UT0W02255PH	Circular	Zinc Alloy	55 positions	Bayonet Lock	22	55	UL94 V-0	Silver	For Male Pins	Nickel	Thermoplastic Glass Filled	Crimp	Contacts Not Included	20	-40 °C	105 ░C	Receptacle Housing	IP67 IP69K	N	Flange	Shielded
Souriau-Sunbank by Eaton UT0W01626SH	Circular	Zinc Alloy	26	Bayonet Lock	16	26	UL94 V-0	Silver	For Female Sockets	Nickel	Thermoplastic Glass Filled	Crimp	Contacts Not Included	20	-40 °C	105 ░C	Receptacle Housing	IP67 IP69K	N	Flange	Shielded
Souriau-Sunbank by Eaton UT0W0106SH	Circular	Zinc Alloy	6	Bayonet Lock			UL94 V-0	Silver	For Female Sockets	Nickel	Thermoplastic Glass Filled	Crimp	Contacts Not Included	20	-40 °C	105 ░C	Receptacle Housing	IP67 IP69K	N	Flange	Shielded	10-6
Souriau-Sunbank by Eaton UT0W02461PH	Circular	Zinc Alloy	61	Bayonet Lock	24	61	UL94 V-0	Silver	For Male Pins	Nickel	Thermoplastic Glass Filled	Crimp	Contacts Not Included	20	-40 °C	105 ░C	Receptacle Housing	IP67 IP69K	N	Flange	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 26.80

Description

General part information

UT0W0 Series

55 Position Circular Connector Receptacle Housing Panel Mount
