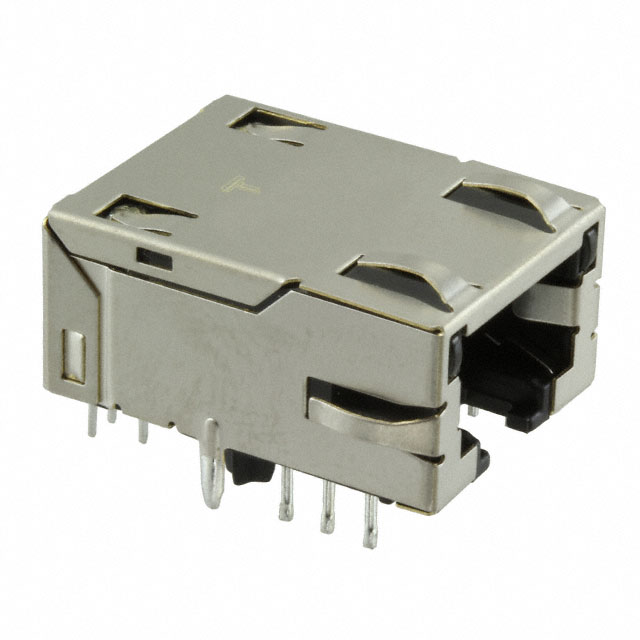

1368589-5
ActiveTRP Connector B.V.
CONN JACK 1PORT 1000 BASE-T PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1368589-5
ActiveTRP Connector B.V.
CONN JACK 1PORT 1000 BASE-T PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1368589-5 |
|---|---|
| Applications | AutoMDIX, 10/100/1000 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Features | Decoupling Capacitance, Board Guide |
| Height Above Board | 0.445 in |
| Height Above Board | 11.3 mm |
| Housing Material | Polyamide (PA), Nylon |
| LED Color | Green, Orange - Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Brass |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.06 | |
| 10 | $ 10.04 | |||
| 25 | $ 9.07 | |||
| 50 | $ 8.42 | |||
| 240 | $ 7.16 | |||
| 480 | $ 6.68 | |||
| 720 | $ 6.43 | |||
| 1200 | $ 6.12 | |||
Description
General part information
1368589 Series
1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
