1115 MC005

Active

ALPHA WIRE

CABLE 2COND 30AWG MULTIPLE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 30AWG MULTIPLE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	1115 MC005

Cable Type	Multi-Conductor
Conductor Material	Copper, Tinned
Conductor Strand [custom]	38 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	1.63 mm
Jacket (Insulation) Diameter [diameter]	0.064 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	200 V
Wire Gauge	30 AWG

Part	Usage	Conductor Material	Length [x]	Length [x]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Number of Conductors
ALPHA WIRE 1115 MC005	Communication Control	Copper Tinned	30.5 m	100 ft	Multi-Conductor	1.63 mm	0.064 in	30 AWG	38 AWG	7	200 V	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Multiple	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 271.95

General part information

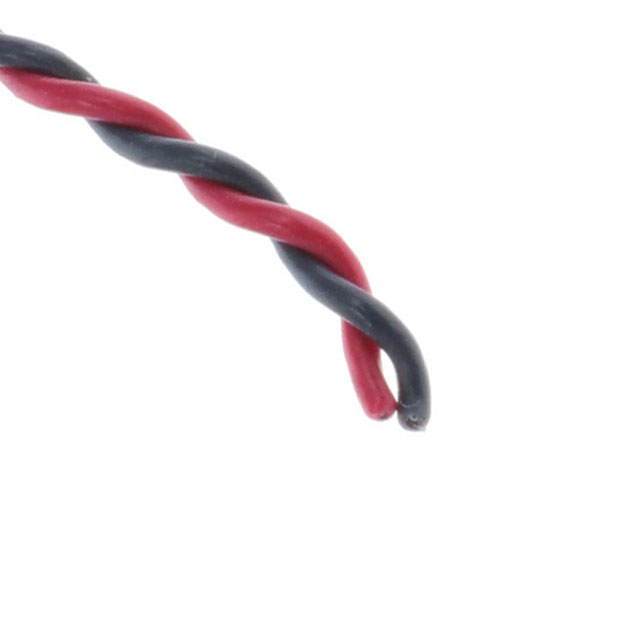

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Multiple 30 AWG 100.0' (30.5m)

Technical documentation and resources
