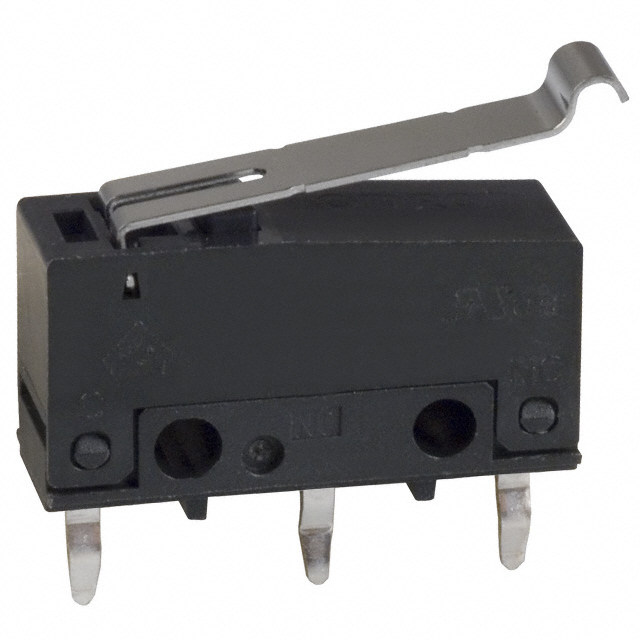

SS-3GL13PB

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

SS-3GL13PB

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-3GL13PB

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating (Amps)	3 A
Differential Travel	0.8 mm
Differential Travel	0.031 "
Electrical Life	100000 Cycles
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	51 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overtravel	0.039 in
Overtravel	1 mm
Release Force	5.099 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SS-3GL Series

Part	Voltage Rating - DC	Operating Force	Differential Travel	Differential Travel	Current Rating (Amps)	Overtravel	Overtravel	Termination Style	Release Force	Ingress Protection	Mounting Type	Voltage Rating - AC	Electrical Life	Circuit	Switch Function	Mechanical Life	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position	Operating Position
Omron Electronics Inc-EMC Div SS-3GL13PT	30 V	51 gf	0.8 mm	0.031 "	3 A	0.039 in	1 mm	Quick Connect - 0.110" (2.8mm)	5.099 gf	IP40	Chassis Mount	125 V	100000 Cycles	SPDT	On-Mom	1000000 Cycles	Lever Simulated Roller	-25 °C	85 °C
Omron Electronics Inc-EMC Div SS-3GLP	30 V	51 gf	0.8 mm	0.031 "	3 A	0.04 in	1 mm	Solder Lug	5.099 gf	IP40	Chassis Mount	125 V	100000 Cycles	SPDT	On-Mom	1000000 Cycles	Lever Straight	-25 °C	85 °C	8.8 mm	0.345 in
Omron Electronics Inc-EMC Div SS-3GL111P
Omron Electronics Inc-EMC Div SS-3GL13PB	30 V	51 gf	0.8 mm	0.031 "	3 A	0.039 in	1 mm	PC Pin	5.099 gf	IP40	Through Hole	125 V	100000 Cycles	SPDT	On-Mom	1000000 Cycles	Lever Simulated Roller	-25 °C	85 °C
Omron Electronics Inc-EMC Div SS-3GL13PD	30 V	51 gf	0.8 mm	0.031 "	3 A	0.039 in	1 mm	PC Pin	5.099 gf	IP40	Through Hole	125 V	100000 Cycles	SPDT	On-Mom	1000000 Cycles	Lever Simulated Roller	-25 °C	85 °C
Omron Electronics Inc-EMC Div SS-3GLPD	30 V	51 gf	0.8 mm	0.031 "	3 A	0.04 in	1 mm	PC Pin	5.099 gf	IP40	Through Hole	125 V	100000 Cycles	SPDT	On-Mom	1000000 Cycles	Lever Straight	-25 °C	85 °C	8.8 mm	0.345 in
Omron Electronics Inc-EMC Div SS-3GL13P	30 V	51 gf	0.8 mm	0.031 "	3 A	0.039 in	1 mm	Solder Lug	5.099 gf	IP40	Chassis Mount	125 V	100000 Cycles	SPDT	On-Mom	1000000 Cycles	Lever Simulated Roller	-25 °C	85 °C
