RB-G7L-2A-V110
ActiveMAKESafe Tools

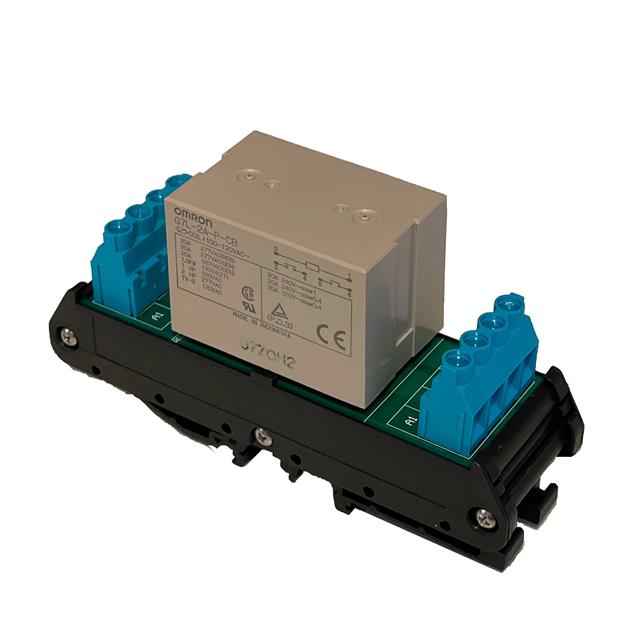

G7L 2A RELAY DIN BRKOUT 20A 2HP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RB-G7L-2A-V110 |
|---|---|
| Coil Insulation | Class B |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Tin Indium (AgSnIn) |
| Contact Rating (Current) | 20 A |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 75 VAC |
| Must Release Voltage | 18 VAC |
| Operate Time | 30 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Relay Type | General Purpose |
| Release Time | 30 ms |
| Switching Voltage | 250 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 28.99 | |
Description
General part information
RB-G7L Series
General Purpose Relay DPST-NO (2 Form A) 120VAC Coil DIN Rail
