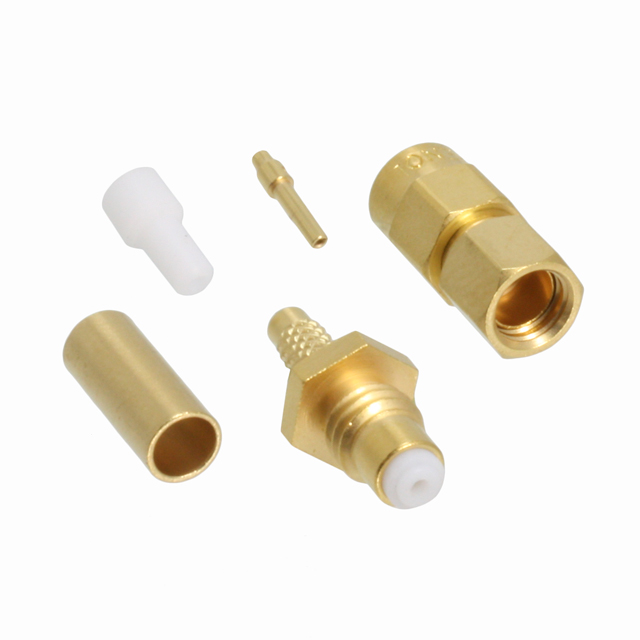

903-284P-52S

Active

Amphenol RF

CONN SMC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	903-284P-52S

Body Finish	Gold
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Contact, 1 Connector, 1 Insulator, 1 Ferrule
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Shield Termination	Housing Color	Body Material	Impedance	Dielectric Material	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Center Contact Plating	Center Contact Material	Cable Group	Body Finish	Connector Type	Connector Style	Contact Termination	Mating Cycles	Includes	Number of Ports
Amphenol RF 903-284P-52S	Crimp	Gold	Brass	50 Ohms	Polytetrafluoroethylene (PTFE)	0.3 dB	-65 ░C	165 °C	Free Hanging (In-Line)	Gold	Beryllium Copper	188 188A 316 LMR-100 M17/119-RG174 RG-174	Gold	Female Socket Plug	SMC	Solder	500	1 Connector 1 Contact 1 Ferrule 1 Insulator	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
