2921-61671

Active

Amphenol SV Microwave

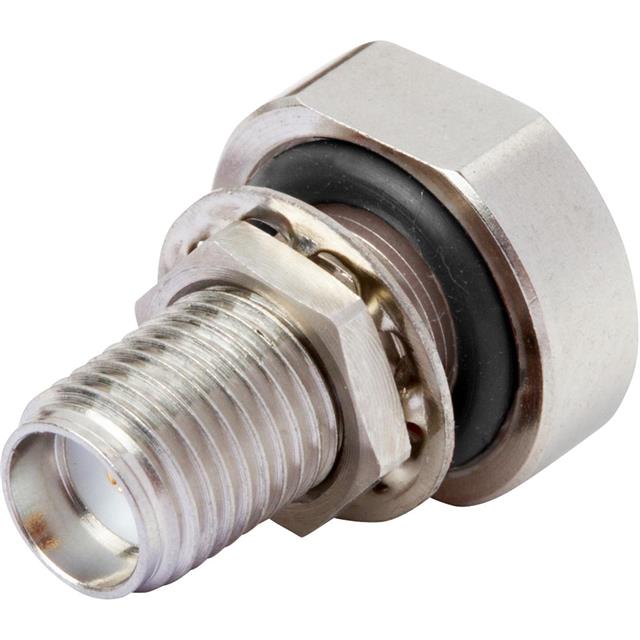

SMA FEMALE BULKHEAD (EMI GASKET)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMA FEMALE BULKHEAD (EMI GASKET)

Technical Specifications

Parameters and characteristics for this part

Specification	2921-61671

Body Material	Stainless Steel
Cable Group	Semi Rigid
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Frequency - Max [Max]	Contact Termination	Mating Cycles	Center Contact Material	Connector Style	Cable Group	Center Contact Plating	Body Finish	Mounting Feature	Connector Type	Body Material	Dielectric Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Shield Termination	Housing Color	Cable Group	Accessory Type	For Use With/Related Products	Insertion Loss	Mounting Type
Amphenol SV Microwave 2921-61689	18 GHz	Solder	500	Beryllium Copper	SMA	RG-405 (.085" Semi Rigid)	Gold	Chromate Black	Bulkhead - Front Side Nut	Female Socket Jack	Stainless Steel	Polytetrafluoroethylene (PTFE)	1	-65 ░C	165 °C	50 Ohms	Clamp	Black
Amphenol SV Microwave 2921-61671	18 GHz	Solder	500	Beryllium Copper	SMA	Semi Rigid	Gold		Bulkhead - Front Side Nut	Female Socket Jack	Stainless Steel	Polytetrafluoroethylene (PTFE)	1	-65 ░C	165 °C	50 Ohms	Clamp	Silver	0.047 in
Amphenol SV Microwave 2921-61408					SMA			Gold			Stainless Steel									Cap (Cover) Dust	SMA Plugs
Amphenol SV Microwave 2921-61493	18 GHz	Solder	500	Beryllium Copper	SMA		Gold	Gold		Female Socket Jack	Stainless Steel	Polytetrafluoroethylene (PTFE)	1	-65 ░C	165 °C	50 Ohms	Solder	Gold				0.13 dB	Board Edge End Launch
Amphenol SV Microwave 2921-61674	26.5 GHz	Compression	500	Beryllium Copper	SMA		Gold			Female Socket Jack	Stainless Steel	Polytetrafluoroethylene (PTFE)	1	-65 ░C	165 °C	50 Ohms	Screw	Silver					Board Edge End Launch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 64.15

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
