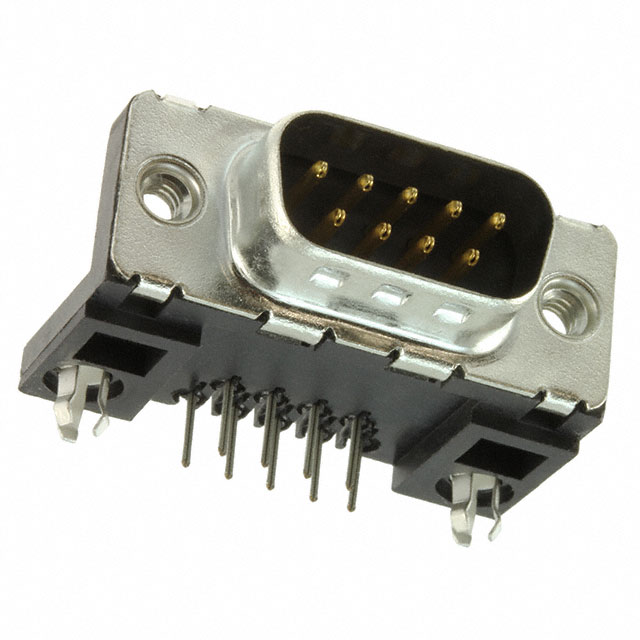

LD09P13A4GX00LF

Active

Amphenol ICC (FCI)

CONN D-SUB PLUG 9POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN D-SUB PLUG 9POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	LD09P13A4GX00LF

Backset Spacing	0.409 in
Backset Spacing	10.4 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Features	Grounding Indents, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Material	Connector Style	Color	Dielectric Material	Number of Rows	Contact Finish	Termination	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Flange Feature	Connector Type	Contact Finish Thickness	Voltage Rating	Mounting Type	Shell Material, Finish	Contact Type	Backset Spacing	Backset Spacing	Features	Number of Positions	Primary Material
Amphenol ICC (FCI) LD09P13A4GX00LF	Copper Alloy	D-Sub	Black	Thermoplastic	2	Gold	Solder	5 A	DE E	1	105 ░C	-55 °C	UL94 V-0	Housing/Shell (4-40)	Male Pins Plug	Flash	250 VDC	Board Edge Right Angle Through Hole	Steel Tin-Nickel Plated	Signal	0.409 in	10.4 mm	Board Lock Grounding Indents	9
Amphenol ICC (FCI) LD09P13A4GI00LF	Copper Alloy	D-Sub	Black	Thermoplastic	2	Gold	Solder	5 A	DE E	1	105 ░C	-55 °C	UL94 V-0	Female Screwlock (M3) Mating Side	Male Pins Plug	Flash	250 VDC	Through Hole Right Angle	Nickel Plated Steel	Signal	0.409 in	10.4 mm	Board Lock Grounding Indents	9	Metal
