09210402601

Active

HARTING Technology Group

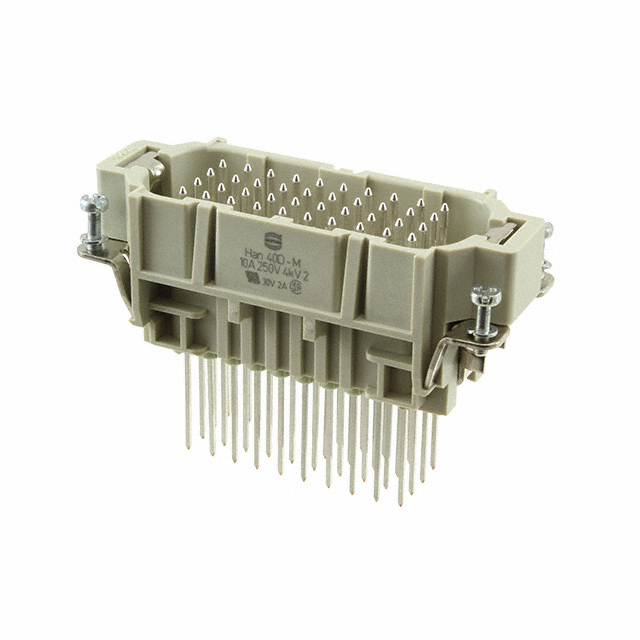

HAN D 40 POS. M INSERT WIRE WRAP ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN D 40 POS. M INSERT WIRE WRAP ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09210402601

Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	40+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Termination Style	Wire Wrap
Voltage Rating	250 VDC

Part	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Size	Contact Material	Termination Style	Number of Positions	Voltage Rating	Gender	Housing Material
HARTING Technology Group 09210402601	UL94 V-0	10 A	125 °C	-40 °C	16 B	Copper Alloy	Wire Wrap	40+Ground	250 VDC	Male	Polycarbonate (PC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert 40+Ground Position Wire Wrap
