55410.81051
Activeebm-papst Inc.

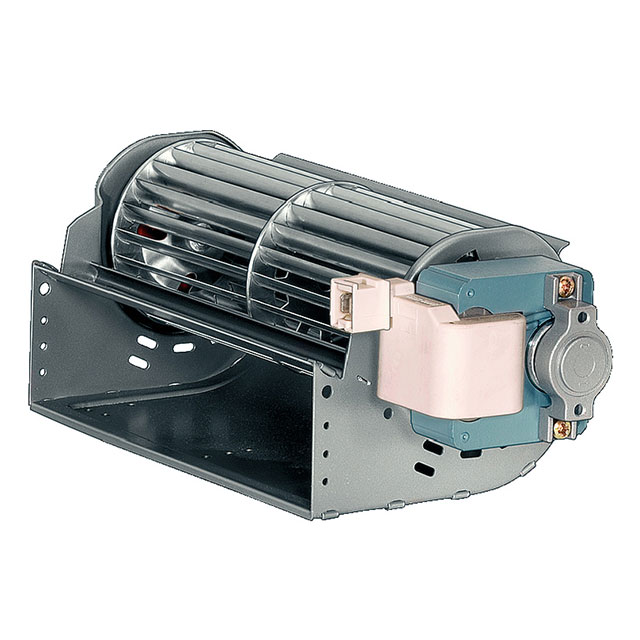

FAN BLWR CF 180X96MM 220/240VAC
Deep-Dive with AI
Search across all available documentation for this part.
55410.81051
Activeebm-papst Inc.
FAN BLWR CF 180X96MM 220/240VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 55410.81051 |
|---|---|
| Air Flow | 72 CFM |
| Air Flow | 2.02 mł/min |
| Approval Agency | UL, VDE, CSA |
| Bearing Type | Sleeve |
| Fan Type | Blower, Cross Flow |
| Material - Blade | Aluminum |
| Material - Frame | Steel |
| Noise | 50 dB(A) |
| Power (Watts) | 35 W |
| Size / Dimension | Rectangular |
| Size / Dimension [diameter] | 60 mm |
| Size / Dimension [x] | 260 mm |
| Size / Dimension [y] | 83 mm |
| Termination | 2 Terminals |
| Voltage - Rated | 240 VAC |
| Width [y] | 96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 90.71 | |
Description
General part information
55410 Series
Fan Blower, Cross Flow 240VAC Rectangular - 260mm L x 83mm H (60mm Dia) Sleeve 72.0 CFM (2.02m³/min) 2 Terminals
