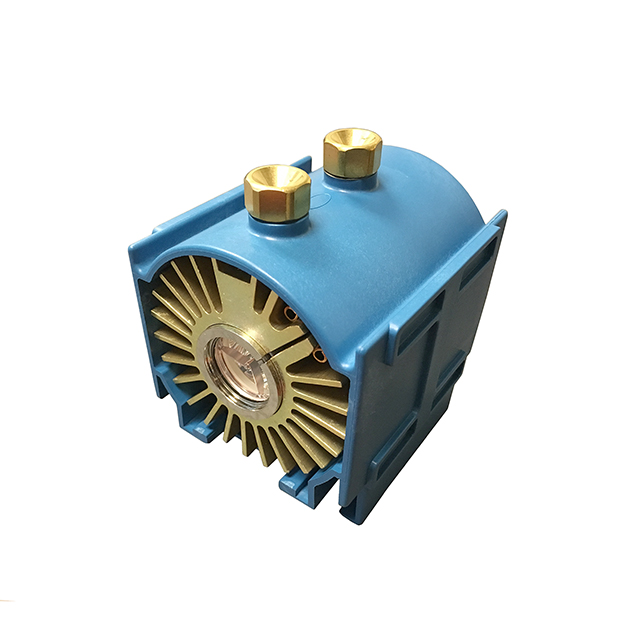

PE300B-10FM

Active

Excelitas Technologies

MODULE CERMAX 300W

Search across all available documentation for this part.

Active

Excelitas Technologies

MODULE CERMAX 300W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage [Max]	Voltage	Voltage [Min]	Temperature [Max]	Type	Style	Visible Output	Output Power [custom]	Output Power [custom]	Output Power [custom]	Output Power
Excelitas Technologies PE300BFM
Excelitas Technologies PE300B-10FM	15 V	23 kV	11.5 V	150 °C	Short Arc Lamp	Ceramic Body	6900 lm	32 W	65 W	3.3 W
Excelitas Technologies PE300C-10F	15 V	23 kV	11.5 V	150 °C	Short Arc Eliptical Lamp	Ceramic Body	6725 lm				9.7 W 34.5 W 75 W
Excelitas Technologies PE300BFA	16 V	23 kV	13 V	150 °C	Short Arc Parabolic Lamp	Ceramic Body	5000 lm	28.8 W	50 W	2.6 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	30	$ 410.00

General part information

Xenon Short Arc Lamp 23kV (Start), 11.5V ~ 15V (Operating) 6900lm Ceramic Body
